Sandvik Coromant C8-391.01-80 065 Coromant Capto™ extension adaptor
Next
Sandvik Coromant C6-390.00-50 080 DIN 2080 to Coromant Capto™ adaptor
Previous
![Sandvik Coromant C8-391.01-80 065 Coromant Capto™ extension adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/4449580fb/sandvik-coromant-c8-391-01-80-065-coromant-captotm-extension-adaptor.jpg)
![Sandvik Coromant C6-390.00-50 080 DIN 2080 to Coromant Capto™ adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/44485684c/sandvik-coromant-c6-390-00-50-080-din-2080-to-coromant-captotm-adaptor.jpg)
R 6 779,25
inc. vat
In stock
SKU
5730218

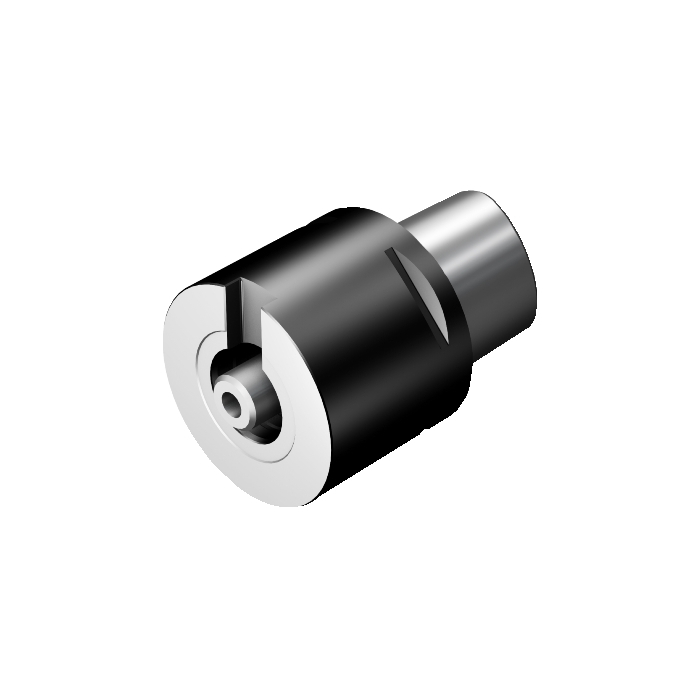

Coromant Capto® to VL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to VL adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 55mm |
DCON - Connection Diameter | 80mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 65mm |
BD - Body Diameter | 80mm |
LB - Body Length | 65mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 170Nm |
WT - Weight Of Item | 3.045kg |
OAL - Overall Length | 113mm |
OHX - Maximum Overhang | 65mm |
ORDCODE | C8-391.01-V80 065 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_VLS01_C0800_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-07-14 09:51:00.000 |
STDNO - Standard Number | ISO26623-1 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
