Sandvik Coromant C8-391.277-02050A Coromant Capto™ to ISO 9766 adjustable adaptor
Next
Sandvik Coromant C8-391.27-40 095 Coromant Capto™ to ISO 9766 adaptor
Previous
![Sandvik Coromant C8-391.277-02050A Coromant Capto™ to ISO 9766 adjustable adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/44506774b/sandvik-coromant-c8-391-277-02050a-coromant-captotm-to-iso-9766-adjustable-adaptor.jpg)
![Sandvik Coromant C8-391.27-40 095 Coromant Capto™ to ISO 9766 adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/44502cc5e/sandvik-coromant-c8-391-27-40-095-coromant-captotm-to-iso-9766-adaptor.jpg)
R 6 492,90
inc. vat
In stock
SKU
5730243

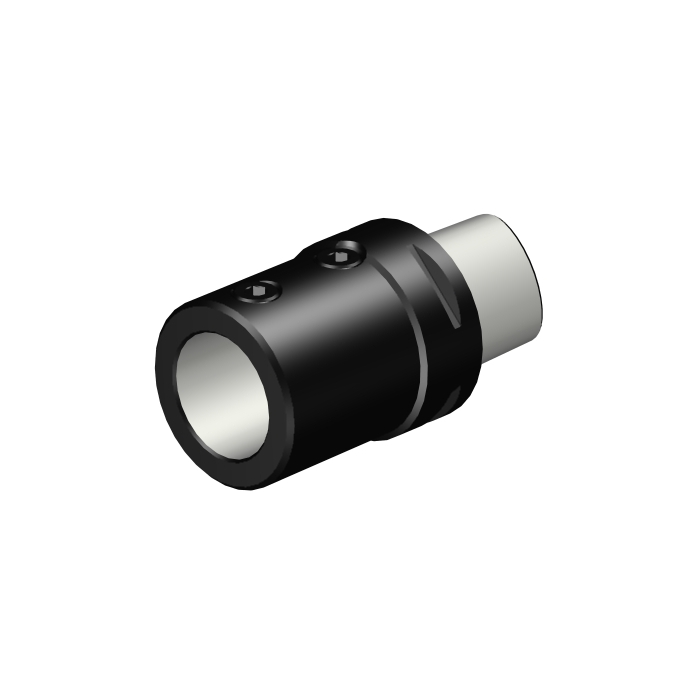

Coromant Capto® to ISO 9766 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to ISO 9766 adaptor
CP - Coolant Pressure | 2000000Pa |
---|---|
DFC - Functional Diameter | 55mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 100mm |
BD - Body Diameter | 80mm |
LB - Body Length | 100mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 45Nm |
RPMX - Rotational Speed Maximum | 140001/min |
WT - Weight Of Item | 2.827kg |
OAL - Overall Length | 148mm |
OHX - Maximum Overhang | 100mm |
LSC - Clamping Length | 81.5mm |
ORDCODE | C8-391.27-50 100 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLISO_G5000_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-20 07:49:00.000 |
STDNO - Standard Number | ISO26623-1 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
