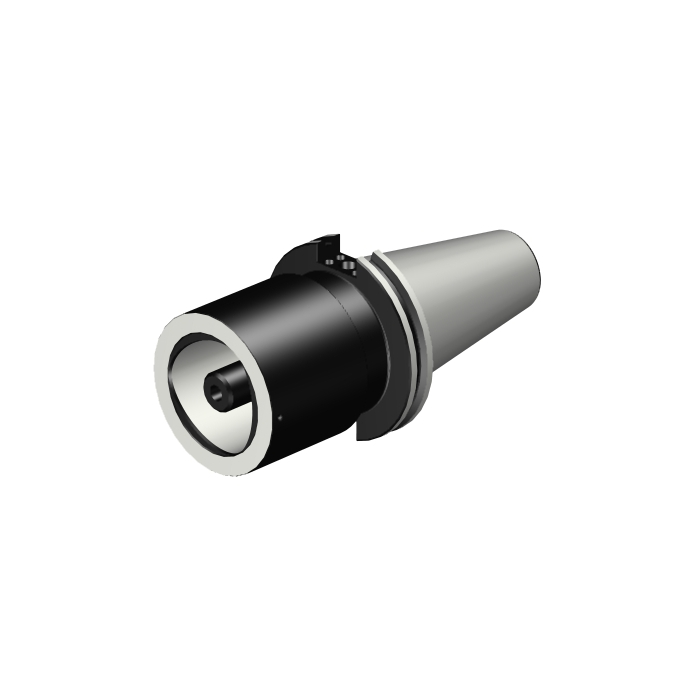

Sandvik Coromant C8-A390.455-50 100 CAT-V to Coromant Capto™ adaptor
R 8 593,95
inc. vat
In stock
SKU
5729789
CAT-V to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CAT-V to Coromant Capto® adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 55mm |
| DCON - Connection Diameter | 80mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 99.9998mm |
| BD - Body Diameter | 98.4mm |
| LB - Body Length | 100mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 65Nm |
| WT - Weight Of Item | 4.72kg |
| OAL - Overall Length | 201.8mm |
| OHX - Maximum Overhang | 99.9998mm |
| ORDCODE | C8-A390.455-50 100 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG36_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0800_1 |
| CNSC - Coolant Entry Style Code | 6 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | 1"-8 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-20 05:19:00.000 |
| STDLET - Standard Letter | B |
| STDNO - Standard Number | ASME B5.50 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
