Sandvik Coromant C8-A390.45HD-60 100 CAT-V to Coromant Capto™ adaptor
R 17 904,35
inc. vat
Out of stock
SKU
5729774
CAT-V to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days

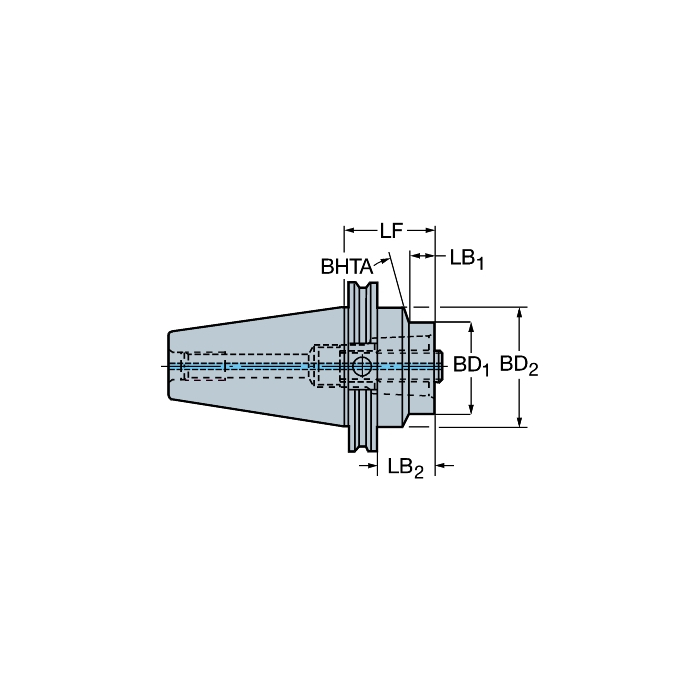

CAT-V to Coromant Capto® adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 55mm |
| DCON - Connection Diameter | 80mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 99.9998mm |
| BD - Body Diameter | 139.7mm |
| LB - Body Length | 100mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 65Nm |
| WT - Weight Of Item | 14kg |
| OAL - Overall Length | 261.9mm |
| OHX - Maximum Overhang | 99.9998mm |
| ORDCODE | C8-A390.45HD-60 100 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG31_C0600_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0800_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | 1 1/4"-7 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-27 19:10:00.000 |
| STDLET - Standard Letter | AD |
| STDNO - Standard Number | ASME B5.50 |
| DPC - Damping Property | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
