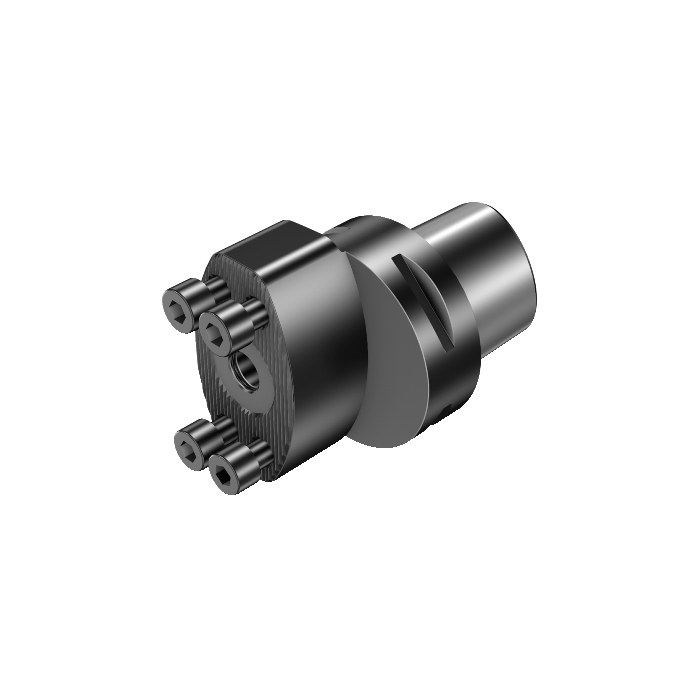

Sandvik Coromant C8-SL70-RG-090 Coromant Capto™ to CoroTurn™ SL70 adaptor

Name: Sandvik Coromant C8-SL70-RG-090 Coromant Capto™ to CoroTurn™ SL70 adaptor
SKU: 5729731
Price: 10442.00 ZAR
Availability: InStock

Be the first to review this product

R 10 442,00 inc. vat

In stock

SKU

5729731

Coromant Capto® to CoroTurn® SL70 adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to CoroTurn® SL70 adaptor

More Information

More Information
CP - Coolant Pressure	15000000Pa
DFC - Functional Diameter	55mm
DCON - Connection Diameter	80mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	90mm
TQ - Torque	30Nm
WT - Weight Of Item	3.11kg
OAL - Overall Length	138mm
OHX - Maximum Overhang	90mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	35mm
HF - Functional Height	0mm
LPR - Protruding Length	90mm
OAH - Overall Height	70.5mm
OAW - Overall Width	95mm
WSC - Clamping Width	70mm
ORDCODE	C8-SL70-RG-090
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0800_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDSS_C0700_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 10:43:00.000
STDNO - Standard Number	ISO26623-1
Hand	R
DPC - Damping Property	False
DCP - Data Chip Provision	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
