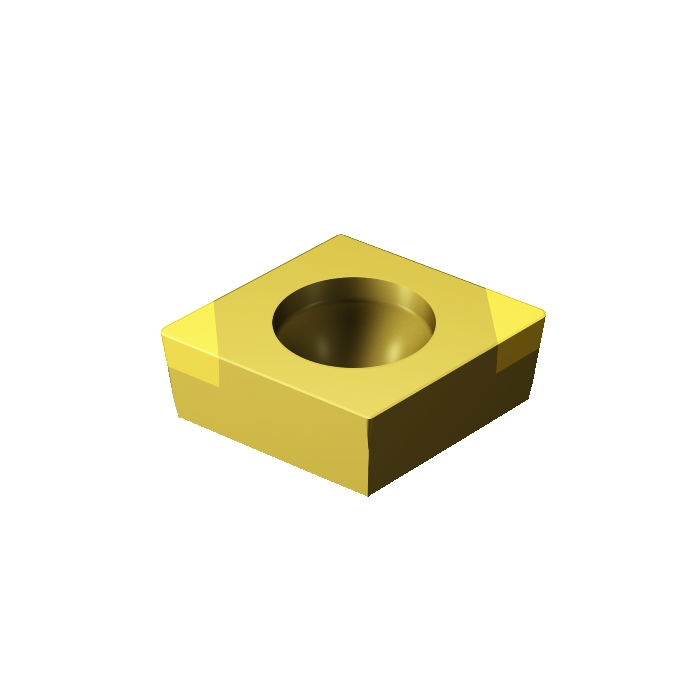

Sandvik Coromant CCGW09T304S01020F 7115 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant CCGW060208S01020F 7115 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant CCGW09T304S01020F 7115 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/618483ef5/sandvik-coromant-ccgw09t304s01020f-7115-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant CCGW060208S01020F 7115 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/618467bd7/sandvik-coromant-ccgw060208s01020f-7115-coroturntm-107-insert-for-turning.jpg)
R 1 247,75
inc. vat
In stock
SKU
7106073
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.003kg |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.4mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 2.6mm |
L - Cutting Edge Length | 9.6719mm |
KRINS - Major Cutting Edge Angle | 95deg |
BN - Face Land Width | 0.15mm |
GB - Face Land Angle | 20deg |
BS - Wiper Edge Length | 0.45mm |
GAN - Insert Rake Angle | 0deg |
ORDCODE | CCGW09T304S01520FWH 7115 |
CHANGEDATE | 2022-09-23 22:03:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | C |
SSC - Insert Seat Size Code | 09 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC09T3_1 |
Grade | 7115 |
COATING | PVD TiN |
SUBSTRATE | BC |
CBMD - Chip Breaker Manufacturer's Designation | WH |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
