Sandvik Coromant CCMT 09 T3 04-WF 5015 CoroTurn™ 107 insert for turning
R 196,65
inc. vat
In stock
SKU
5724774

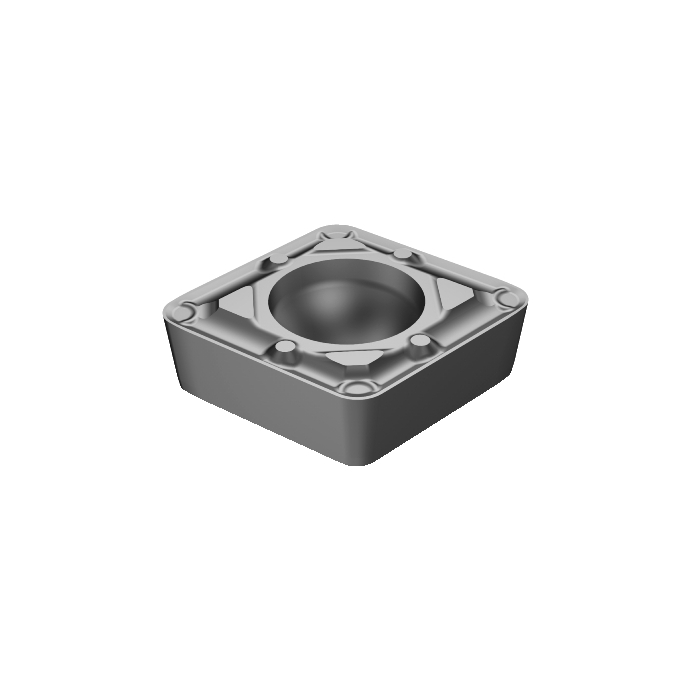

CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 2g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| LE - Cutting Edge Effective Length | 9.2719mm |
| L - Cutting Edge Length | 9.6719mm |
| KRINS - Major Cutting Edge Angle | 95deg |
| BS - Wiper Edge Length | 0.7mm |
| ORDCODE | CCMT 09 T3 04-WF 5015 |
| CHANGEDATE | 2022-04-20 17:05:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | C |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC09T3_1 |
| Grade | 5015 |
| SUBSTRATE | HT |
| CBMD - Chip Breaker Manufacturer's Designation | WF |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
