Sandvik Coromant CCMT 09 T3 04-WF 1525 CoroTurn™ 107 insert for turning Previous Sandvik Coromant CCMT 09 T3 04-WF 1525 CoroTurn™ 107 insert for turning

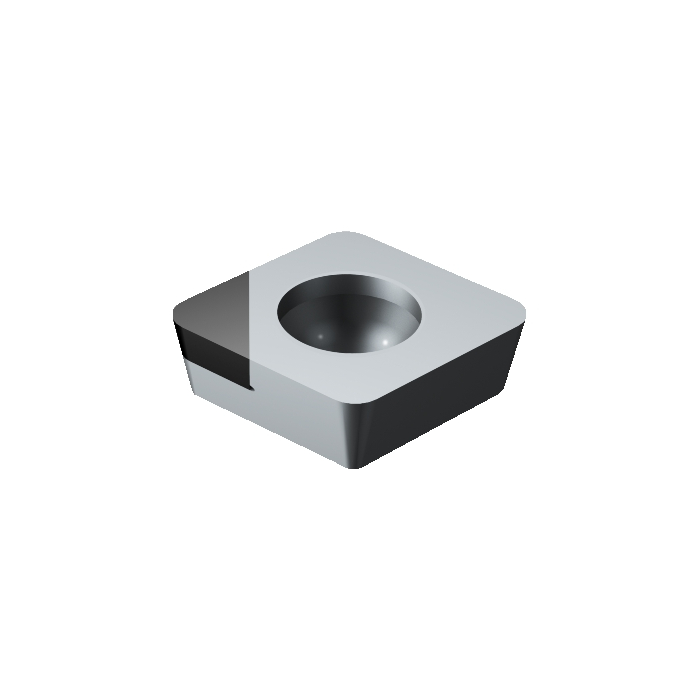

Sandvik Coromant CCMW09T308FP CD10 CoroTurn™ 107 insert for turning

R 2 240,20 inc. vat
In stock
SKU
5723841
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3.7g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 4.2mm
L - Cutting Edge Length 9.6719mm
ORDCODE CCMW09T308FP CD10
CHANGEDATE 2021-12-17 16:57:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CC09T3_1
Grade CD10
SUBSTRATE DP
CBMD - Chip Breaker Manufacturer's Designation FP
CEDC - Cutting Edge Count 1
WEP - Wiper Edge Property False
