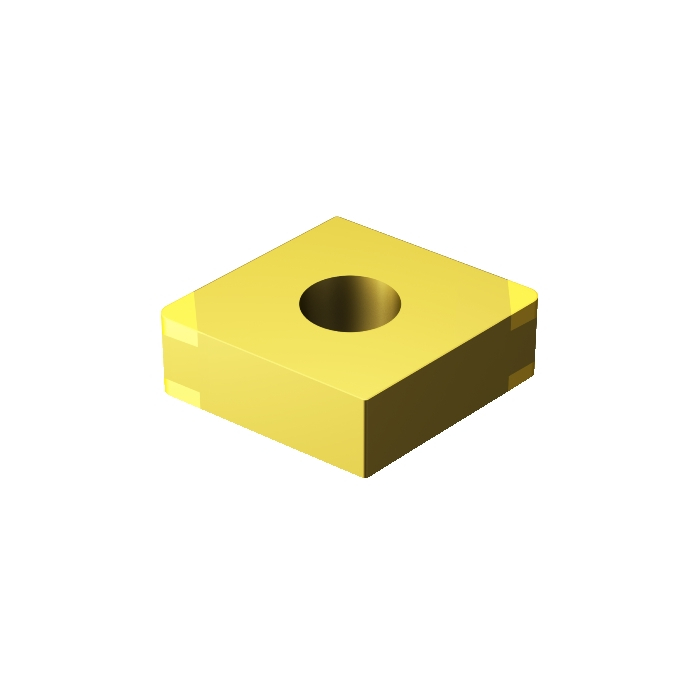

Sandvik Coromant CNGA120412S02030H 7115 T-Max™ P insert for turning
Next
Sandvik Coromant CNGA120412S01520HWH 7115 T-Max™ P insert for turning
Previous
R 2 237,90
inc. vat
In stock
SKU
7190862
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 10.2g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 1.2mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 2.4mm |
L - Cutting Edge Length | 12.8959mm |
BN - Face Land Width | 0.15mm |
GB - Face Land Angle | 25deg |
GAN - Insert Rake Angle | 0deg |
ORDCODE | CNGA120412S01525H 7115 |
CHANGEDATE | 2022-09-22 12:36:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | C |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CN1204_1 |
Grade | 7115 |
COATING | PVD TiN |
SUBSTRATE | BC |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | False |
