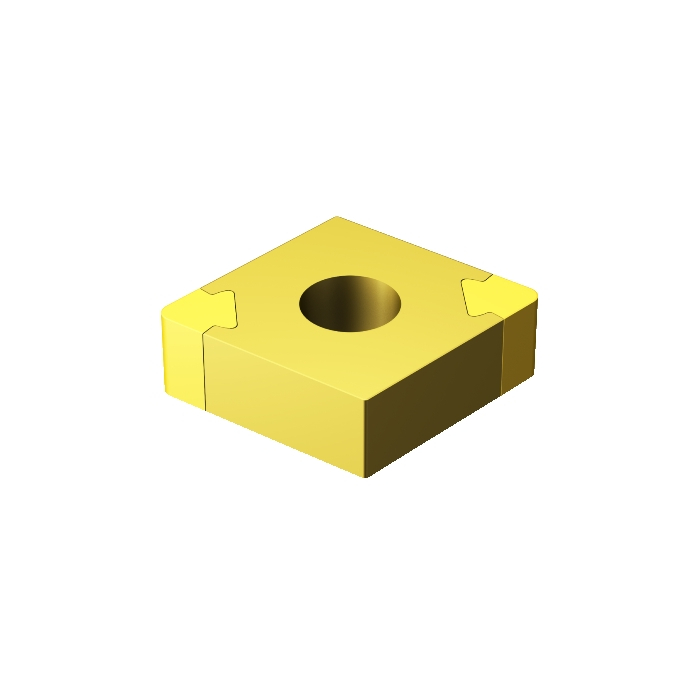

Sandvik Coromant CNGA120412T02520 6190 T-Max™ P insert for turning
Next
Sandvik Coromant CNGA120412T01020 650 T-Max™ P insert for turning
Previous
![Sandvik Coromant CNGA120412T02520 6190 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/42154df9f/sandvik-coromant-cnga120412t02520-6190-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant CNGA120412T01020 650 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/42152bbfa/sandvik-coromant-cnga120412t01020-650-t-maxtm-p-insert-for-turning.jpg)
R 2 692,15
inc. vat
In stock
SKU
5724554
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.011kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 1.1906mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 2.8mm |
L - Cutting Edge Length | 12.8959mm |
KRINS - Major Cutting Edge Angle | 95deg |
BN - Face Land Width | 0.1mm |
GB - Face Land Angle | 30deg |
BS - Wiper Edge Length | 0.6mm |
ORDCODE | CNGA120412T01030AWH 7015 |
CHANGEDATE | 2021-12-17 17:02:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | C |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CN1204_1 |
Grade | 7015 |
COATING | PVD TiN |
SUBSTRATE | BC |
CBMD - Chip Breaker Manufacturer's Designation | WH |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
