Sandvik Coromant CNMG 12 04 12-WMX 4305 T-Max™ P insert for turning
Next
Sandvik Coromant CNMG 12 04 12-QM 4305 T-Max™ P insert for turning
Previous
![Sandvik Coromant CNMG 12 04 12-WMX 4305 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/595096a0a/sandvik-coromant-cnmg-12-04-12-wmx-4305-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant CNMG 12 04 12-QM 4305 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/5950795f8/sandvik-coromant-cnmg-12-04-12-qm-4305-t-maxtm-p-insert-for-turning.jpg)
R 279,45
inc. vat
In stock
SKU
6707373
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days

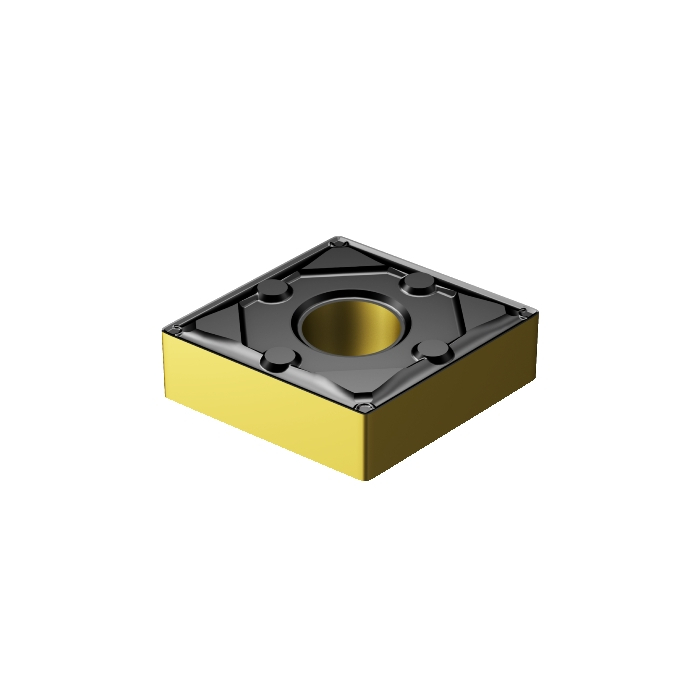

T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 9.3g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 1.1906mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 11.6959mm |
L - Cutting Edge Length | 12.8959mm |
KRINS - Major Cutting Edge Angle | 95deg |
BS - Wiper Edge Length | 0.8mm |
ORDCODE | CNMG 12 04 12-WF 4305 |
CHANGEDATE | 2022-09-22 11:49:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | C |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CN1204_1 |
Grade | 4305 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | WF |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
