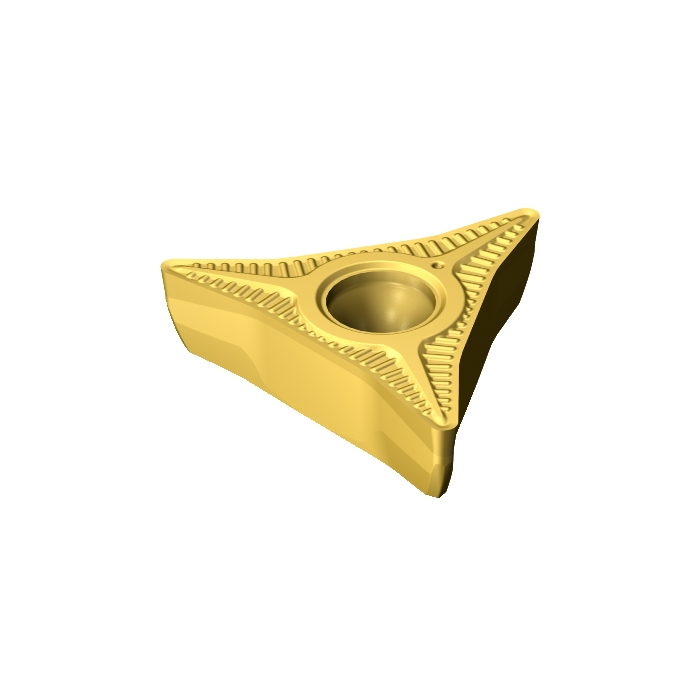

Sandvik Coromant CP-A1108-L5W 2025 CoroTurn™ Prime insert for turning
R 434,70
inc. vat
In stock
SKU
7100702
CoroTurn® Prime insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® Prime insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 12.3g |
| AN - Clearance Angle Major | 6deg |
| IC - Inscribed Circle Diameter | 11mm |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 6mm |
| D1 - Fixing Hole Diameter | 3.7mm |
| KRINS - Major Cutting Edge Angle | 27.5deg |
| GAN - Insert Rake Angle | 0deg |
| ORDCODE | CP-A1108-L5W 2025 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-09-23 22:50:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | CP-A |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TKA11_1 |
| Grade | 2025 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | L5W |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | True |
