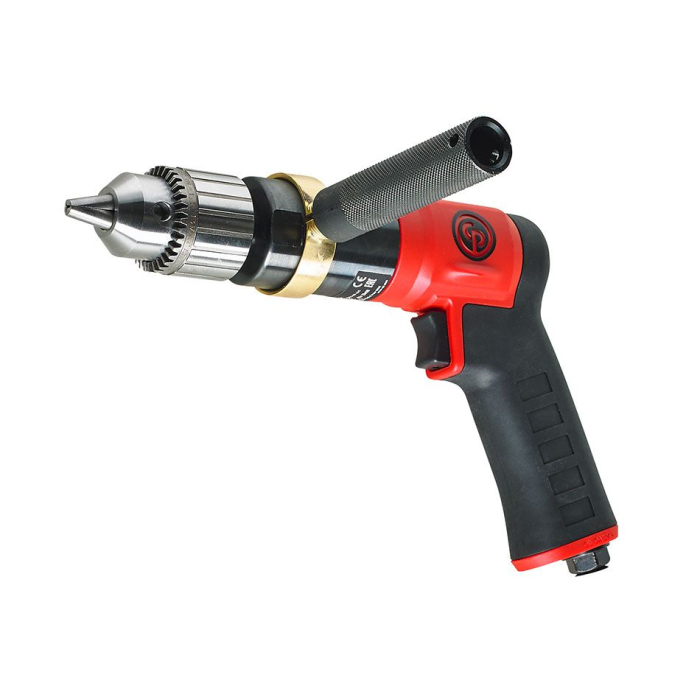

CP9286C PISTOL GRIP PDRILL
R 12 596,01
inc. vat
In stock
SKU
CP-8941092860
Reliable nationwide shipping
Delivery in 4 - 5 days
Pistol grip drill. Excellent for drilling, honing, reaming and hole sawing.
Benefits
- High Comfort
- Ergonomics
- Excellent Speed Control
- High resistance to stalls
- Great handling
- Operator friendly
- High durability
- Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal
CE Certificate
Operators Manual
Exploded View
Safety Instructions & Data Sheets
Chicago Pneumatic Composite Drills Leaflet
| Metric | Imperial | |
|---|---|---|
| Model | CP9286C | |
| Part number | 8941092860 | |
| Actual air consumption | 11 l/s | 24 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 3.25 l/s | 6.9 cfm |
| Box dimensions | 276x168x58 mm | 10.9x6.6x2.3 " |
| Chuck capacity | 13 mm | 1/2 " |
| Collet / spindle size | 3/8-24 " | |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | ISO 15744 | |
| European Standards | EN ISO 11148-3:2012 | |
| Free speed | 600 rpm | |
| Free speed air consumption | 13 l/s | 27.5 cfm |
| Height | 150 mm | 5.9 " |
| Length | 250 mm | 9.8 " |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 1.49 kg | 3.3 lb |
| Over carton | 1200x800x630 mm | 47.2x31.5x24.8 " |
| Power | 360 W | 1/2 hp |
| Side to centre | 51 mm | 2 " |
| Sound Power | 95.2 db(A) | |
| Sound pressure | 84.2 db(A) | |
| Stall torque | 22 Nm | 16.2 ft.lbs |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-5 |
- Composite housing with thermoplastic rubber handle grip
- Wings on right & left sides to guide the forefinger
- Large teasing trigger and progressive valve allowing more control to start holes
- Low-speed gear box
- Flat back part for better pushing action while drilling and tapping
- Handle exhaust allowing the air to flow away from the operator
- Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal - Excellent for drilling, honing, reaming and hole sawing
