CP9285C COMPOSITE AIR DRILL
Special Price
R 5 850,23
inc. vat
Regular Price
R 7 312,79
inc. vat
In stock
SKU
CP-8941092850
Reliable nationwide shipping
Delivery in 4 - 5 days

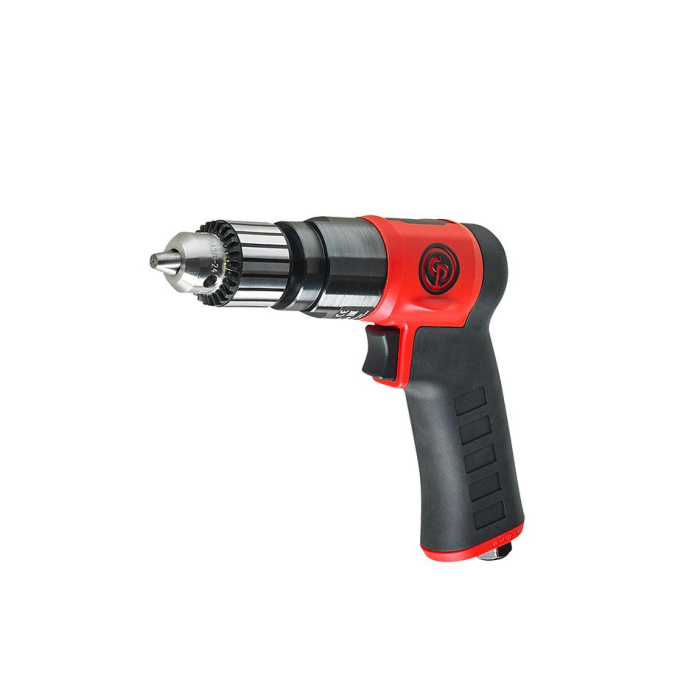

Composite air drill. Excellent for drilling, honing, reaming and hole sawing.
Benefits
- High Comfort
- Ergonomics
- Excellent Speed Control
- High resistance to stalls
- Great handling
- Operator friendly
- High durability
- Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal
CE Certificate
Operators Manual
Exploded View
Safety Instructions & Data Sheets
CP Composite Drills for Vehicle Service and MRO leaflet
| Metric | Imperial | |
|---|---|---|
| Model | CP9285C | |
| Part number | 8941092850 | |
| Actual air consumption | 10 l/s | 21 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 3.25 l/s | 6.9 cfm |
| Box dimensions | 242.5x172.5x53.5 mm | 9.5x9.8x2.1 " |
| Chuck capacity | 10 mm | 3/8 " |
| Collet / spindle size | 3/8-24 " | |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | ISO 15744 | |
| European Standards | EN ISO 11148-3:2012 | |
| Free speed | 3000 rpm | |
| Free speed air consumption | 13 l/s | 27.5 cfm |
| Height | 150 mm | 5.9 " |
| Length | 209 mm | 8.2 " |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 1.09 kg | 2.4 lb |
| Over carton | 1200x800x630 mm | 47.2x31.5x24.8 " |
| Power | 460 W | 0.6 hp |
| Side to center | 51 mm | 2 " |
| Sound Power | 94.7 db(A) | |
| Sound pressure | 83.7 db(A) | |
| Stall torque | 5 1/2 Nm | 4.1 ft.lbs |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-5 |
- Composite housing with thermoplastic rubber handle grip
- Wings on right & left sides to guide the forefinger
- Large teasing trigger and progressive valve allowing more control to start holes
- Low-speed gearbox
- Flatback part for better-pushing action while drilling and tapping
- Handle exhaust allowing the air to flow away from the operator
- Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal - Excellent for drilling, honing, reaming and hole sawing
