Sandvik Coromant CSDPN 2020K 12 T-Max™ S shank tool for turning

Name: Sandvik Coromant CSDPN 2020K 12 T-Max™ S shank tool for turning
SKU: 5726005
Price: 1906.70 ZAR
Availability: InStock

R 1 906,70 inc. vat

In stock

SKU

5726005

T-Max® S shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® S shank tool for turning

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	125mm
TQ - Torque	5Nm
WT - Weight Of Item	0.387kg
OAL - Overall Length	125mm
OHX - Maximum Overhang	29mm
LSC - Clamping Length	96mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	40deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	10.3mm
HF - Functional Height	20mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	0.79375mm
Insert Thickness	3.175mm
H - Shank Height	20mm
B - Shank Width	20mm
ORDCODE	CSDPN 2020K 12
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2020_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-06 23:29:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_SP1203_1
Hand	N

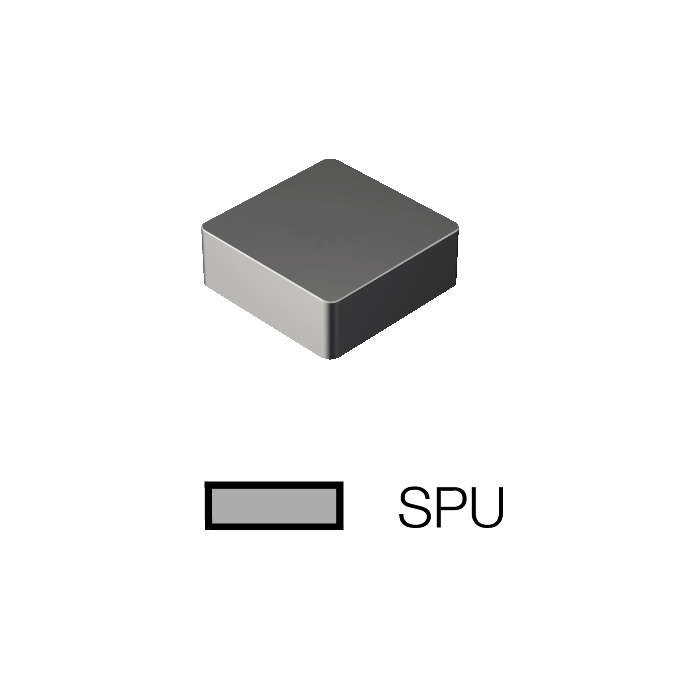

MIID - Master Insert Identification	SPUN 12 03 08
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
