Sandvik Coromant CTTPL 2525M 16 T-Max™ S shank tool for turning
Next
Sandvik Coromant CTDPR 1212F 11 T-Max™ S shank tool for turning
Previous
![Sandvik Coromant CTTPL 2525M 16 T-Max™ S shank tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/4260747d6/sandvik-coromant-cttpl-2525m-16-t-maxtm-s-shank-tool-for-turning.jpg)
![Sandvik Coromant CTDPR 1212F 11 T-Max™ S shank tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/42605bf6c/sandvik-coromant-ctdpr-1212f-11-t-maxtm-s-shank-tool-for-turning.jpg)
R 2 756,55
inc. vat
In stock
SKU
5726300
T-Max® shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 170mm |
TQ - Torque | 3.9Nm |
WT - Weight Of Item | 1.062kg |
OAL - Overall Length | 178.32mm |
OHX - Maximum Overhang | 27.4mm |
LSC - Clamping Length | 142.6mm |
KAPR - Tool Cutting Edge Angle | 45deg |
RMPX - Maximum Ramping Angle | 0deg |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 32mm |
HF - Functional Height | 32mm |
GAMO - Orthogonal Rake Angle | -8deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 7.9375mm |
H - Shank Height | 32mm |
LPR - Protruding Length | 178.32mm |
B - Shank Width | 25mm |
ORDCODE | CSSNR 3225P 12-4 |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A3225_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:07:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_SN1207_2 |
Hand | R |

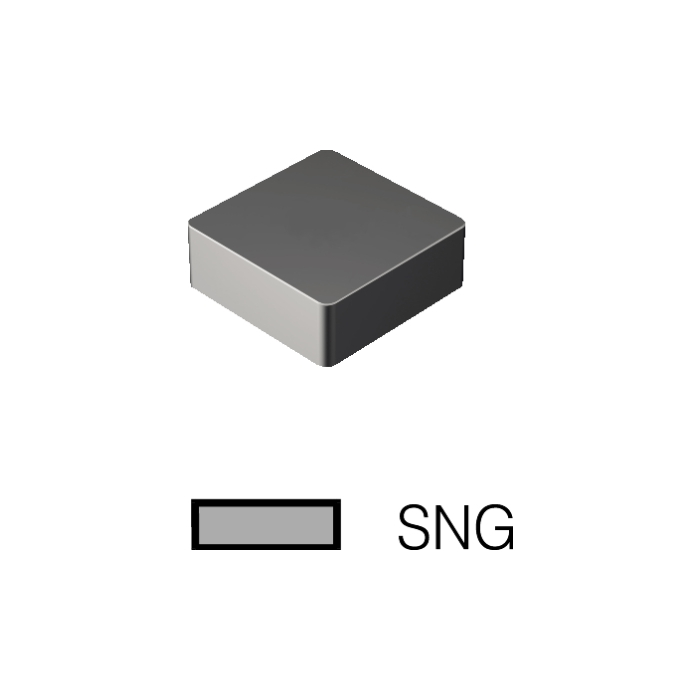

MIID - Master Insert Identification | SNGN 12 07 08 |
IFS - Insert Mounting Style Code | 1 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 12 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
