R 2 018,25
inc. vat
Out of stock
SKU
5726301
T-Max® S shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S shank tool for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 150mm |
TQ - Torque | 5Nm |
WT - Weight Of Item | 0.73kg |
OAL - Overall Length | 150mm |
OHX - Maximum Overhang | 39.6mm |
LSC - Clamping Length | 110.4mm |
KAPR - Tool Cutting Edge Angle | 60deg |
RMPX - Maximum Ramping Angle | 30deg |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 22mm |
HF - Functional Height | 25mm |
GAMO - Orthogonal Rake Angle | 6deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 3.175mm |
H - Shank Height | 25mm |
B - Shank Width | 25mm |
ORDCODE | CTTPL 2525M 16 |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-06 23:34:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_TP1603_2 |
Hand | L |

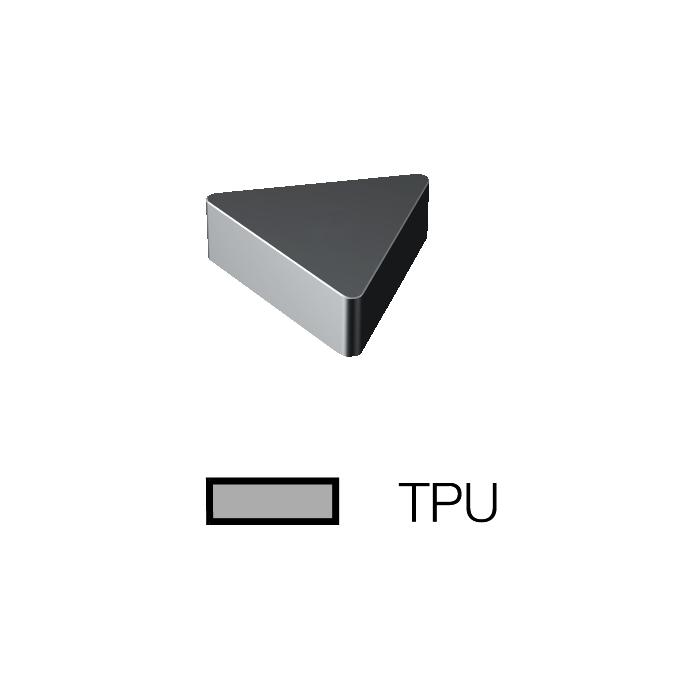

MIID - Master Insert Identification | TPUN 16 03 08 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 16 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
