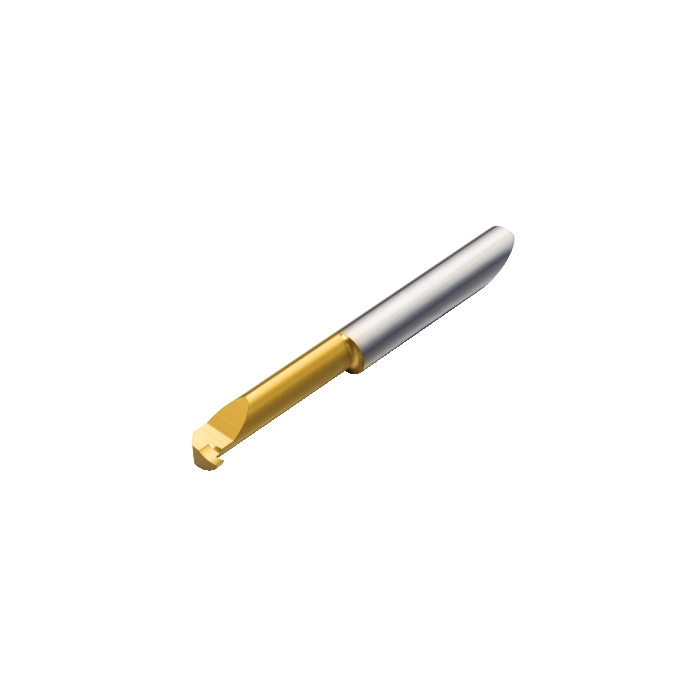

Sandvik Coromant CXS-06G100-6240R 1025 CoroTurn™ XS solid carbide tool for grooving

Name: Sandvik Coromant CXS-06G100-6240R 1025 CoroTurn™ XS solid carbide tool for grooving
SKU: 6765463
Price: 1089.05 ZAR
Availability: OutOfStock

Be the first to review this product

R 1 089,05 inc. vat

Out of stock

SKU

6765463

CoroTurn® XS solid carbide tool for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for grooving

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	62.25mm
WT - Weight Of Item	0.027kg
OAL - Overall Length	64.85mm
OHX - Maximum Overhang	43mm
LSC - Clamping Length	19.25mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	6.2mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	2.95mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
LU - Usable Length	40mm
CW - Cutting Width	1mm
CWTOLL - Cutting Width Lower Tolerance	0mm
CWTOLU - Cutting Width Upper Tolerance	0.05mm
CDX - Cutting Depth Maximum	1.8mm
WB - Body Width	3.95mm
CHWL - Chamfer Width Left Hand	0.04mm
CHWR - Chamfer Width Right Hand	0.04mm
PSIRL - Major Left Hand Cutting Edge Angle	0deg
PSIRR - Major Right Hand Cutting Edge Angle	0deg
ORDCODE	CXS-06G100-6240R 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-03-09 13:06:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
