Sandvik Coromant DPMT 07 02 04-PM 1525 CoroTurn™ 111 insert for turning
R 152,95
inc. vat
In stock
SKU
5732455
CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days

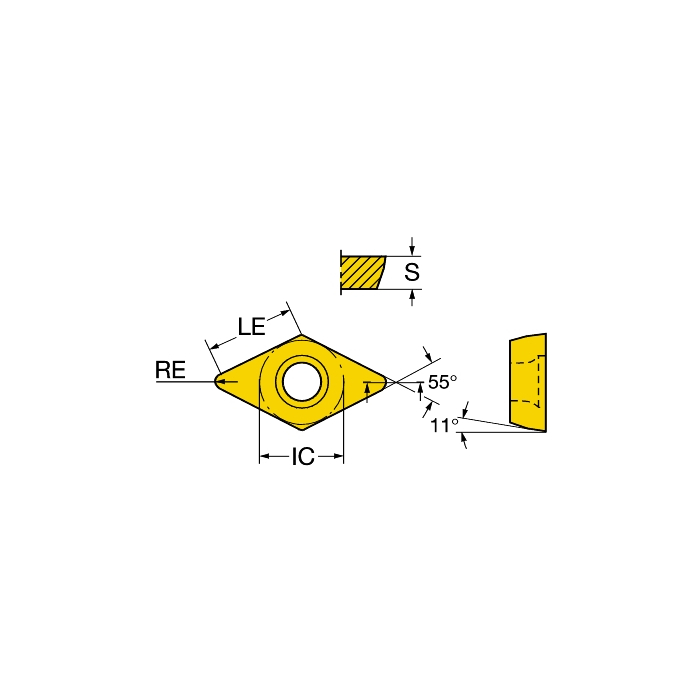

CoroTurn® 111 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.6g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 7.3519mm |
| L - Cutting Edge Length | 7.7519mm |
| ORDCODE | DPMT 07 02 04-PM 1525 |
| CHANGEDATE | 2022-03-28 13:10:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 07 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DP0702_1 |
| Grade | 1525 |
| COATING | PVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PM |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
