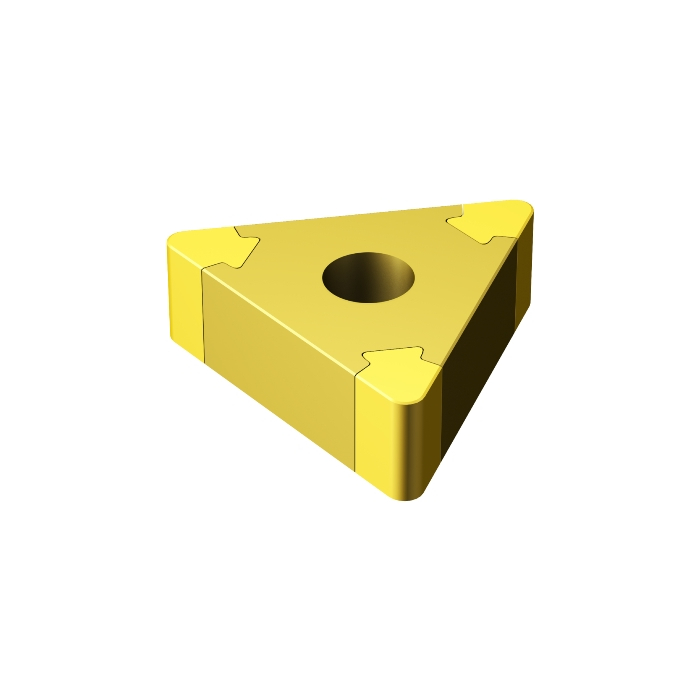

Sandvik Coromant TNGA160408S01030A 7015 T-Max™ P insert for turning
R 3 063,60
inc. vat
In stock
SKU
5754004
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.007kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 3.81mm |
| LE - Cutting Edge Effective Length | 2.7mm |
| L - Cutting Edge Length | 16.4978mm |
| BN - Face Land Width | 0.1mm |
| GB - Face Land Angle | 30deg |
| ORDCODE | TNGA160408S01030A 7015 |
| CHANGEDATE | 2021-12-17 19:33:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN1604_1 |
| Grade | 7015 |
| COATING | PVD TiN |
| SUBSTRATE | BC |
| CEDC - Cutting Edge Count | 6 |
| WEP - Wiper Edge Property | False |
