R 1 716,95
inc. vat
In stock
SKU
5734776
T-Max® P shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P shank tool for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 125mm |
TQ - Torque | 3.9Nm |
WT - Weight Of Item | 0.379kg |
OAL - Overall Length | 125mm |
OHX - Maximum Overhang | 34.3mm |
LSC - Clamping Length | 90.7mm |
KAPR - Tool Cutting Edge Angle | 95deg |
RMPX - Maximum Ramping Angle | 0deg |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 25mm |
HF - Functional Height | 20mm |
GAMO - Orthogonal Rake Angle | -6deg |
LAMS - Inclination Angle | -6deg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 4.7625mm |
H - Shank Height | 20mm |
B - Shank Width | 20mm |
ORDCODE | DWLNR 2020K 08 |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2020_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:33:00.000 |
MTP - Clamping Type Code | D |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_WN0804_1 |
Hand | R |

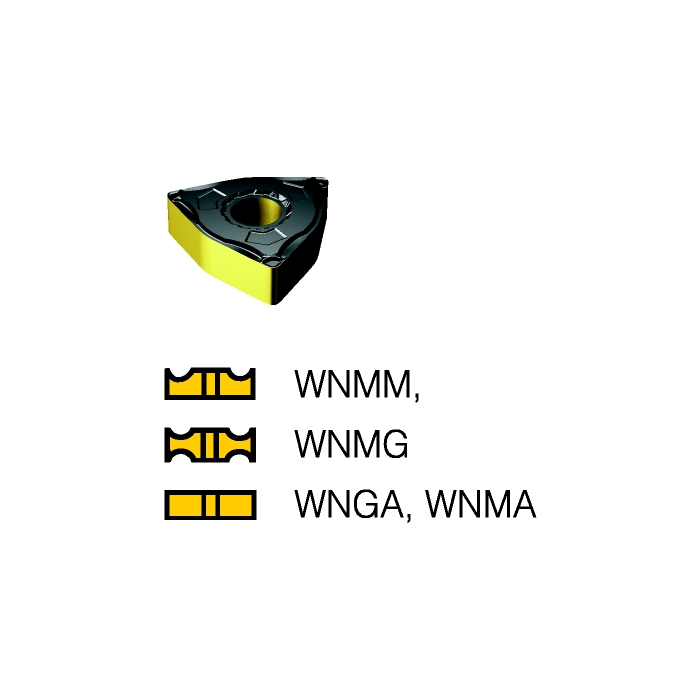

MIID - Master Insert Identification | WNMG 08 04 08 |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 08 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
