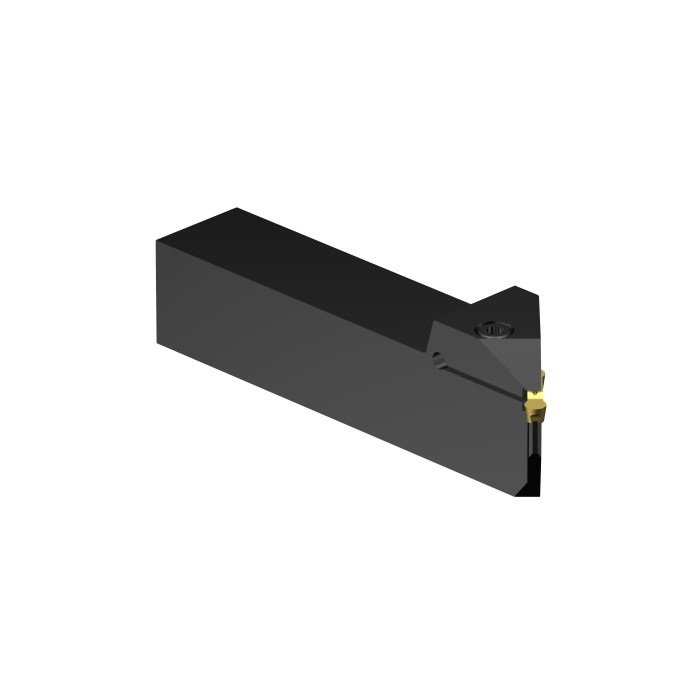

Sandvik Coromant LX123J020-20B-045 CoroCut™ 1-2 shank tool for profiling

R 4 280,30 inc. vat
In stock
SKU
5734821
CoroCut® 1-2 shank tool for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for profiling
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 170mm
TQ - Torque 5Nm
WT - Weight Of Item 1.1kg
OAL - Overall Length 170mm
OHX - Maximum Overhang 48.3mm
LSC - Clamping Length 121.7mm
RMPX - Maximum Ramping Angle 45deg
BAWS - Workpiece Side Body Angle 45deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 37.1mm
HF - Functional Height 31.75mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.35mm
H - Shank Height 31.75mm
LU - Usable Length 5mm
CW - Cutting Width 6mm
B - Shank Width 31.75mm
ORDCODE LX123J020-20B-045
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B2020_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:33:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCJ2_7
Hand L
MIID - Master Insert Identification N123J2-0600- RM
SSC - Insert Seat Size Code J
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
