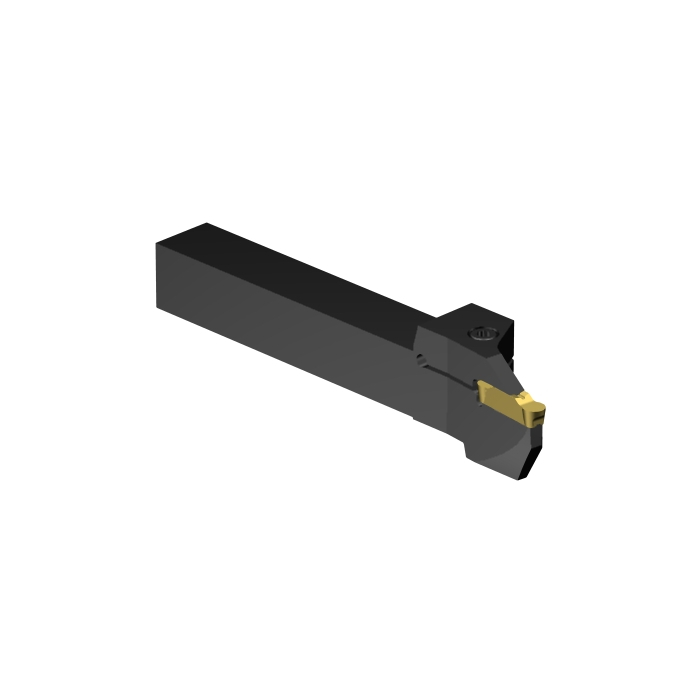

Sandvik Coromant LX123L25-2525B-007 CoroCut™ 1-2 shank tool for profiling

R 3 398,25 inc. vat
In stock
SKU
5734831
CoroCut® 1-2 shank tool for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for profiling
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 190mm
TQ - Torque 6.5Nm
WT - Weight Of Item 0.866kg
OAL - Overall Length 190mm
OHX - Maximum Overhang 63.7mm
LSC - Clamping Length 126.3mm
RMPX - Maximum Ramping Angle 7deg
BAWS - Workpiece Side Body Angle 7deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 32mm
HF - Functional Height 25mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 6.05mm
H - Shank Height 25mm
LPR - Protruding Length 190mm
CW - Cutting Width 8mm
B - Shank Width 25mm
CDX - Cutting Depth Maximum 25mm
ORDCODE LX123L25-2525B-007
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2525_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:33:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCL2_5
Hand L
MIID - Master Insert Identification N123L2-0800- RM
SSC - Insert Seat Size Code L
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
