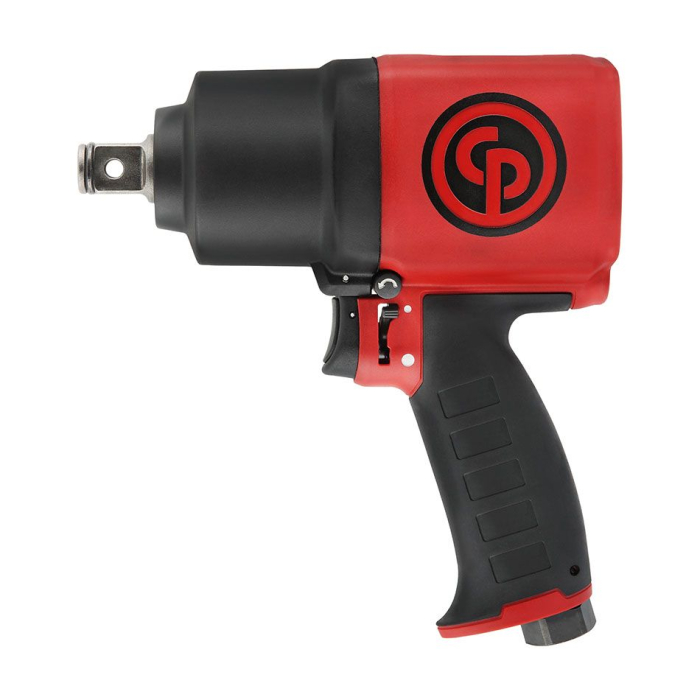

CP CP7769D 3/4" Impact Wrench
Special Price
R 25 793,04
inc. vat
Regular Price
R 32 241,30
inc. vat
In stock
SKU
Cp-8941077691
Reliable nationwide shipping
Delivery in 4 - 5 days
The unrivaled ¾” impact wrench.
Benefits
Compact
Ergonomic
Powerful
Lightweight
High durability
Flexible
More secured
| Metric | Imperial | |
|---|---|---|
| Model | CP7769 | |
| Part number | 8941077691 | |
| Actual air consumption | 1158 l/mn | 40.7 cfm |
| Air inlet thread size | 3/8 " | |
| Average air consumption | 4.8 l/s | 10.2 cfm |
| Blows per minute | 1200 | |
| Box dimensions | 235x235x101 mm | 9.3x9.3x4.0 " |
| Clutch type | Twin hammer | |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | ISO 15744 | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 6500 rpm | |
| Handle type | Pistol | |
| Height | 220 mm | 8.7 " |
| Length | 200 mm | 7.9 " |
| Maximum Torque (reverse) | 1950 Nm | 1440 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Net weight | 3.15 kg | 6.9 lb |
| Power/weight ratio | 619.05 Nm/kg | 208.70 ft.lb/lb |
| Socket retainer | Dual (hole+friction) | |
| Sound Power | 107.8 db(A) | |
| Sound pressure | 96.8 db(A) | |
| Square drive | 3/4 " | |
| Vibration | 12.97 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 1 1/2 m/s² | |
| Width | 84 mm | 3.3 " |
| Working Torque Range (fwd) | 407 - 1464 Nm | 300 - 1080 ft.lbs |
- Length = 7.9 in. / 200 mm
- All controls within reach
- Variable speed trigger
- One-hand power adjustment
- One-hand reverse system
- 1440 ft.lbs / 1950 Nm of maximum torque
- Composite motor housing
- Twin hammer mechanism
- 360° swivel air inlet
- Socket retainer ring combined with hole retainer
