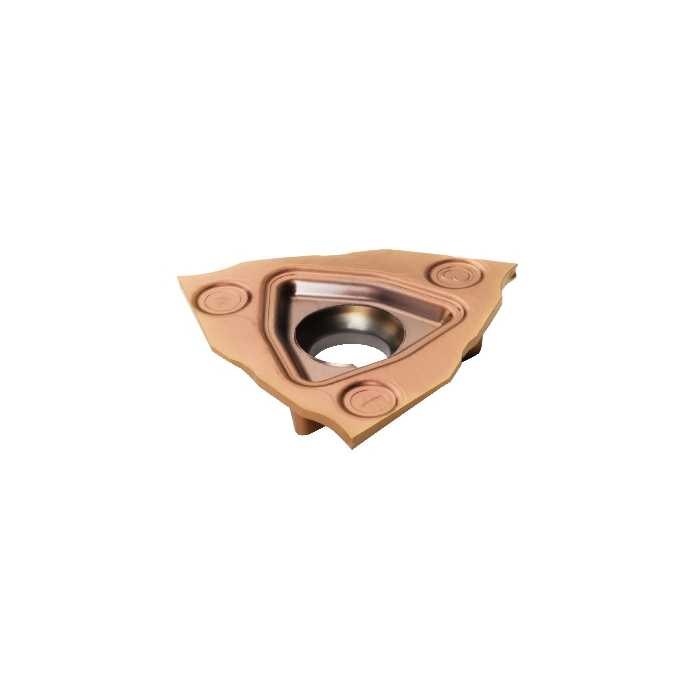

Sandvik Coromant L123T3-0200-1500-CS 1125 CoroCut™ 3 insert for parting

Name: Sandvik Coromant L123T3-0200-1500-CS 1125 CoroCut™ 3 insert for parting
SKU: 5734078
Price: 611.80 ZAR
Availability: InStock

R 611,80 inc. vat

In stock

SKU

5734078

CoroCut® 3 insert for parting

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 3 insert for parting

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	6.5g
BAMS - Machine Side Body Angle	0deg
AN - Clearance Angle Major	7deg
Insert Thickness	3.73mm
CW - Cutting Width	2mm
CWTOLL - Cutting Width Lower Tolerance	-0.1mm
CWTOLU - Cutting Width Upper Tolerance	0mm
REL - Corner Radius Left	0mm
RER - Corner Radius Right	0mm
CDX - Cutting Depth Maximum	6.3mm
PSIRL - Major Left Hand Cutting Edge Angle	15deg
RETOLL - Corner Radius Lower Tolerance	0mm
RETOLU - Corner Radius Upper Tolerance	0.05mm
CUTDIA - Work Piece Parting Diameter Maximum	100mm
ORDCODE	L123T3-0200-1500-CS 1125
CHANGEDATE	2022-06-23 10:01:00.000
Hand	L
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	T
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_CDT_1
Grade	1125
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	CS
CEDC - Cutting Edge Count	3
