Sandvik Coromant LAG123G037-20B CoroCut™ 1-2 boring bar for grooving
Next
Sandvik Coromant LAG123G024-12B CoroCut™ 1-2 boring bar for grooving
Previous
R 4 548,25
inc. vat
In stock
SKU
5734798

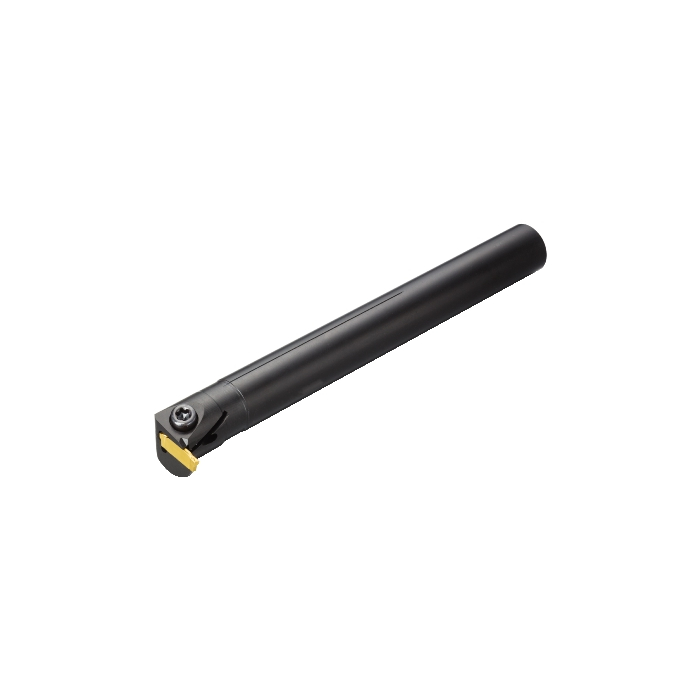

CoroCut® 1-2 boring bar for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 boring bar for grooving
CP - Coolant Pressure | 4000000Pa |
---|---|
DCON - Connection Diameter | 25.4mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 200mm |
BD - Body Diameter | 16mm |
TQ - Torque | 4Nm |
WT - Weight Of Item | 727.8g |
OAL - Overall Length | 200mm |
OHX - Maximum Overhang | 101.6mm |
LSC - Clamping Length | 98.4mm |
KAPR - Tool Cutting Edge Angle | 90deg |
DMIN - Minimum Bore Diameter | 32mm |
BAWS - Workpiece Side Body Angle | 90deg |
OHN - Minimum Overhang | 35mm |
WF - Functional Width | 19.75mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.3321mm |
CW - Cutting Width | 3mm |
CDX - Cutting Depth Maximum | 7mm |
ORDCODE | LAG123G030-16B |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_S1000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:33:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCG2_5 |
Hand | L |
MIID - Master Insert Identification | N123G2-0300- GM |
SSC - Insert Seat Size Code | G |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
LOCAP - Location Aid Property | True |
