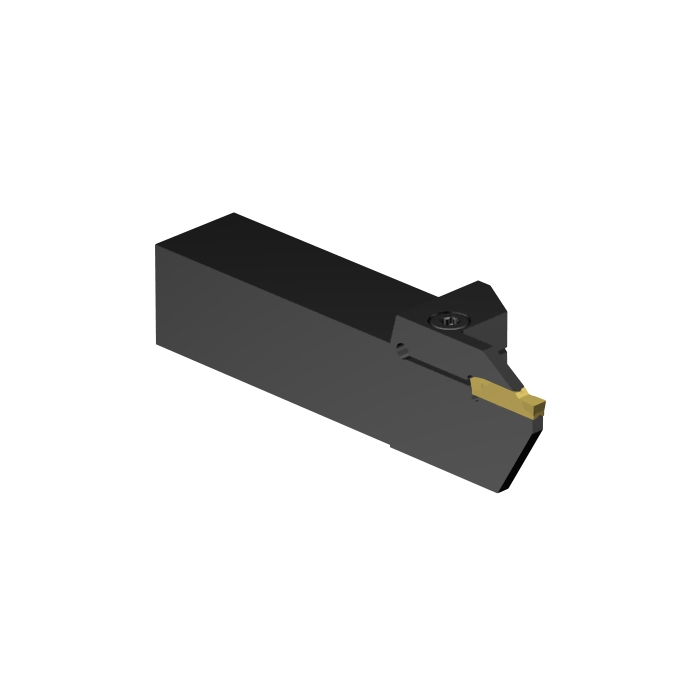

Sandvik Coromant LF123J126-20BM CoroCut™ 1-2 shank tool for parting and grooving
R 3 972,10
inc. vat
In stock
SKU
5732396
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 152.4mm |
| TQ - Torque | 7.5Nm |
| WT - Weight Of Item | 0.996kg |
| OAL - Overall Length | 152.4mm |
| OHX - Maximum Overhang | 56.9976mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 32.9946mm |
| HF - Functional Height | 31.75mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.35mm |
| H - Shank Height | 31.75mm |
| CW - Cutting Width | 5mm |
| B - Shank Width | 31.75mm |
| CDX - Cutting Depth Maximum | 32.004mm |
| ORDCODE | LF123J126-20BM |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B2020_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:17:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCJ2_4 |
| Hand | L |
| MIID - Master Insert Identification | N123J2-0500-0002-CM |
| SSC - Insert Seat Size Code | J |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
