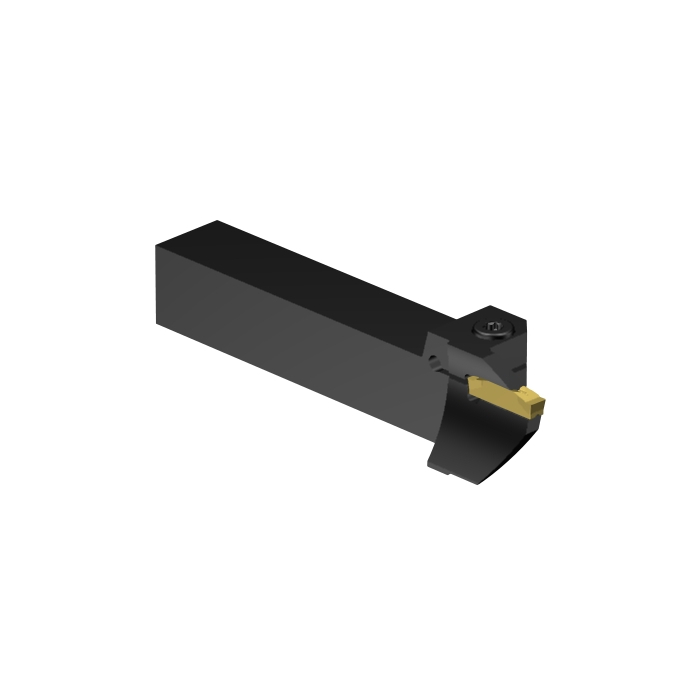

Sandvik Coromant LF123K25-2525B-058BM CoroCut™ 1-2 shank tool for face grooving
Next
Sandvik Coromant LF123L25-2525B-050BM CoroCut™ 1-2 shank tool for face grooving
Previous
![Sandvik Coromant LF123K25-2525B-058BM CoroCut™ 1-2 shank tool for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46139f044/sandvik-coromant-lf123k25-2525b-058bm-corocuttm-1-2-shank-tool-for-face-grooving.jpg)
![Sandvik Coromant LF123L25-2525B-050BM CoroCut™ 1-2 shank tool for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46133add8/sandvik-coromant-lf123l25-2525b-050bm-corocuttm-1-2-shank-tool-for-face-grooving.jpg)
R 2 941,70
inc. vat
In stock
SKU
5734594
CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 150mm |
TQ - Torque | 3.8Nm |
WT - Weight Of Item | 0.681kg |
OAL - Overall Length | 150mm |
OHX - Maximum Overhang | 44mm |
LSC - Clamping Length | 106mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 26mm |
HF - Functional Height | 25mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
H - Shank Height | 25mm |
CW - Cutting Width | 6mm |
B - Shank Width | 25mm |
CDX - Cutting Depth Maximum | 20mm |
DAXN - Minimum Axial Groove Outside Diameter | 52mm |
DAXX - Maximum Axial Groove Outside Diameter | 70mm |
ORDCODE | LF123K20-2525B-040BM |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:25:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCK2_5 |
Hand | L |
MIID - Master Insert Identification | N123K2-0600-0004-TF |
SSC - Insert Seat Size Code | K |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
