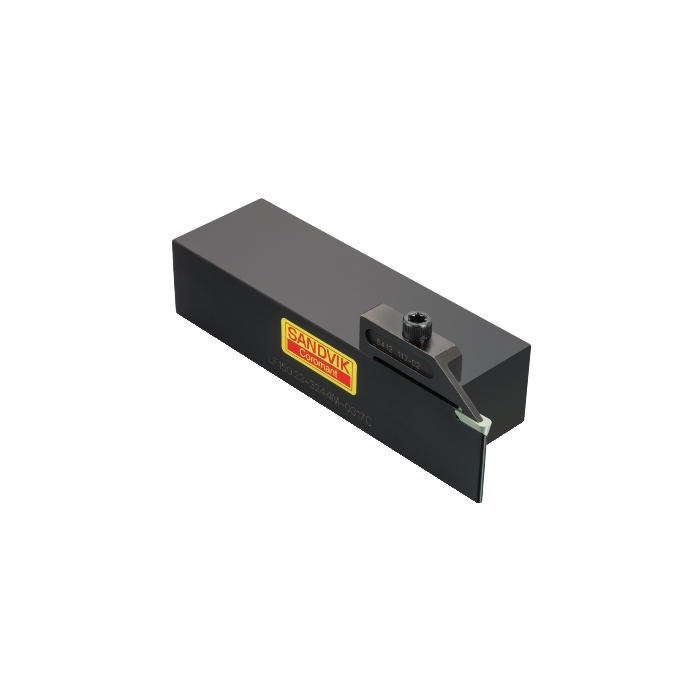

Sandvik Coromant LF150.23-3244M-0952C T-Max™ shank tool for parting and grooving
Next
Sandvik Coromant LF150.23-3244M-0476C T-Max™ shank tool for parting and grooving
Previous
![Sandvik Coromant LF150.23-3244M-0952C T-Max™ shank tool for parting and grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/458119563/sandvik-coromant-lf150-23-3244m-0952c-t-maxtm-shank-tool-for-parting-and-grooving.jpg)
![Sandvik Coromant LF150.23-3244M-0476C T-Max™ shank tool for parting and grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/458092356/sandvik-coromant-lf150-23-3244m-0476c-t-maxtm-shank-tool-for-parting-and-grooving.jpg)
R 2 990,00
inc. vat
In stock
SKU
5733631
T-Max® shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for parting and grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 150mm |
TQ - Torque | 5Nm |
WT - Weight Of Item | 1.479kg |
OAL - Overall Length | 150mm |
OHX - Maximum Overhang | 67mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 44.6mm |
HF - Functional Height | 32mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 6.35mm |
H - Shank Height | 32mm |
CW - Cutting Width | 16.129mm |
B - Shank Width | 44mm |
CDX - Cutting Depth Maximum | 29mm |
ORDCODE | LF150.23-3244M-0635C |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A3244_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-21 05:46:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CA3_1 |
Hand | L |
MIID - Master Insert Identification | 150.23-0635 |
SSC - Insert Seat Size Code | 3 |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
