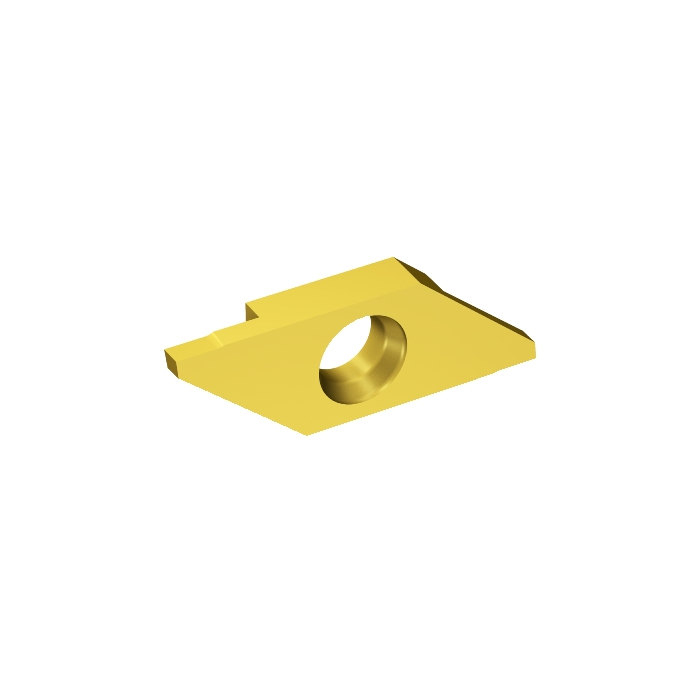

Sandvik Coromant MACR 3 200-T 1025 CoroCut™ XS insert for parting

R 696,90 inc. vat
In stock
SKU
5735434
CoroCut® XS insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS insert for parting
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4.5g
KAPR - Tool Cutting Edge Angle 91deg
RMPX - Maximum Ramping Angle 0deg
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 6deg
Insert Thickness 3.175mm
CW - Cutting Width 2mm
CWTOLL - Cutting Width Lower Tolerance -0.02mm
CWTOLU - Cutting Width Upper Tolerance 0.02mm
REL - Corner Radius Left 0.05mm
RER - Corner Radius Right 0.05mm
CDX - Cutting Depth Maximum 8.2mm
APMX - Depth Of Cut Maximum 3mm
RETOLL - Corner Radius Lower Tolerance -0.03mm
RETOLU - Corner Radius Upper Tolerance 0.03mm
CUTDIA - Work Piece Parting Diameter Maximum 16mm
ORDCODE MACR 3 200-T 1025
CHANGEDATE 2022-06-23 10:05:00.000
Hand R
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 3
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CE3R_1
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MAC
CEDC - Cutting Edge Count 2
