R 696,90
inc. vat
In stock
SKU
5735436

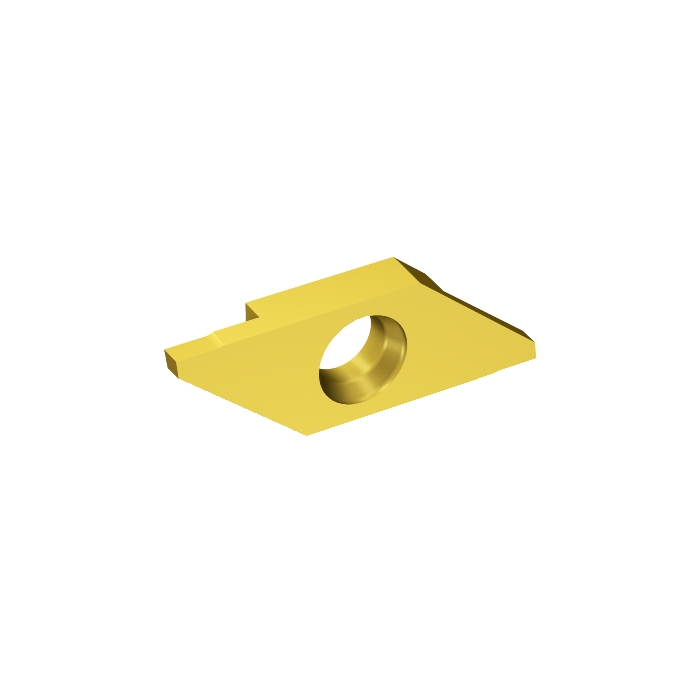

CoroCut® XS insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS insert for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.005kg |
KAPR - Tool Cutting Edge Angle | 91deg |
RMPX - Maximum Ramping Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 6deg |
Insert Thickness | 3.175mm |
CW - Cutting Width | 2.5mm |
CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
REL - Corner Radius Left | 0.05mm |
RER - Corner Radius Right | 0.05mm |
CDX - Cutting Depth Maximum | 8.2mm |
APMX - Depth Of Cut Maximum | 3mm |
RETOLL - Corner Radius Lower Tolerance | -0.03mm |
RETOLU - Corner Radius Upper Tolerance | 0.03mm |
CUTDIA - Work Piece Parting Diameter Maximum | 16mm |
ORDCODE | MACR 3 250-T 1025 |
CHANGEDATE | 2022-06-23 10:05:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 3 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CE3R_1 |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MAC |
CEDC - Cutting Edge Count | 2 |
