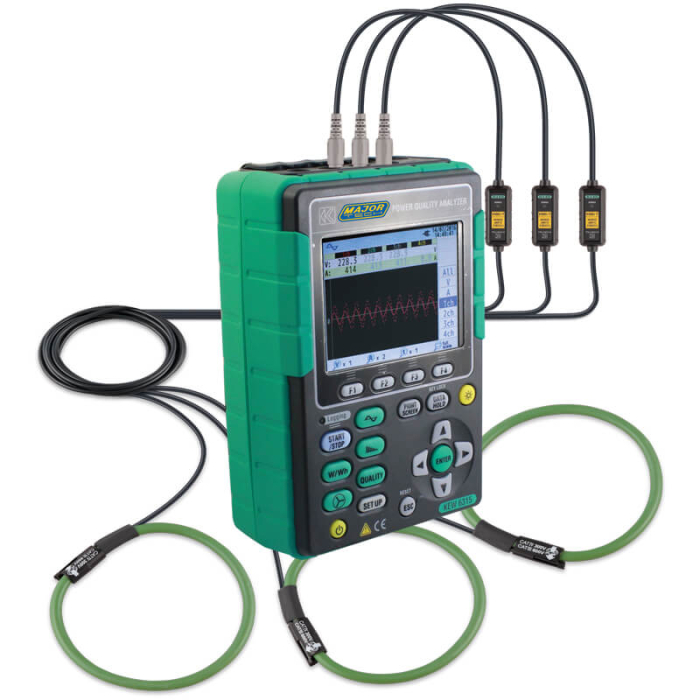

Major Tech K6315-03 Power Analyzer Complete with 3 x K8130

Name: Major Tech K6315-03 Power Analyzer Complete with 3 x K8130
SKU: MajK6315-03
Price: 132514.50 ZAR
Availability: InStock

Be the first to review this product

R 132 514,50 inc. vat

In stock

SKU

MajK6315-03

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Easy-to-use settings that simultaneous record of power & power quality measurements in one survey. Major Tech’s Power Quality Analyser are the perfect tools for measuring energy and power control. The K6315-03 measures Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent energy, Power factor (cosꝊ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption/Transients/Over voltage, Inrush, Unbalanced rate), Capacitance calculation for PF correction unit, Flicker.

K6315-03 is supplied as a set complete with the K8130 Flexible Load Current Clamp Sensors

Accessories:
Carrying case
AA Batteries
Test leads
Instruction manual
Charger
Software
USB Cable
2GB SD Card
COC

Technical Specifications

Instruction Manual

Additional information

Wiring connections	1P2W, 1P3W, 3P3W, 3P4W
Measurements and Parameters	Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent energy, Power factor (cosꝊ), Neutral current, Demand, Harmonics, Quality (Swell/Dip
Other functions	Digital Output function, external communication function, scaling function
Voltage (RMS)	600.0/1000V
Voltage resolution	0.1V
Voltage accuracy	±(0.2% ±0.2%)f.s.(sine wave,40-70Hz)
Allowable Input	1-120% of each range (rms). 200% of each range (peak)
Display Range	0.15-130% of each range
Crest Factor	3 or less
Sampling Speed	2.4µs
Current (RMS)	100mA-3000A depending on CT selection
Current resolution	100mA
Current accuracy	±(0.2% ±0.2%)f.s. +accuracy of clamp sensor (sine wave,40-70Hz)
Active Power accuracy	±(0.3% ±0.2%)f.s. +accuracy of clamp sensor (power factor 1 sine wave,40-70Hz)
Frequency Range	40-70Hz
Power source AC	AC100-240V/ 50/60Hz/ 7VA max
Power source DC	6 x LR6 or Ni-Mh, Batt Life ±3hrs
Internal Memory	Flash Memory (4MB)
PC Card Interface	SD Card (2GB)
PC Communication	USB Ver2.0, Bluetooth Ver 2.1 EDR Class2
Display update period	1 second
Enclosure	Rubber Overmold casing
Weight	900g
Dimensions	175 x 120 x 68mm
Included Accessories	7141B (Voltage test lead), 7170 (power cord), 7219(USB Cable), 8326-02 (SD Card 2GB), 9135 (Carry Case), Input terminal plates x 6, Kew windows, Calibration cert, quick manual 6 x LR6 batteries

Features

The perfect tool for energy saving and power quality control
Simultaneous Power & Power quality measurements Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)
Helpful support functions – Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement
Measurement with high accuracy Guaranteed accuracy: ±0.3%rdg (energy), ±0.2%rdg (voltage/ current) Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160
Remote monitoring on PC and Android device
Remote checking of measurement in real-time is possible via Bluetooth communication.
Recorded data can be saved on the supplied SD card.
EN50160 report can be generated after a survey by PC software.
Various Clamp Current Sensors – Various types of clamp and flexible sensors are available: from 1000mA Range up to 3000A Range and Earth leakage measurements
Energy consumption check on-site – Trend and demand graphs for easy recognition. TFT color display with high resolution.
CAT IV 300V, CAT III 600V & CAT II 1000V
