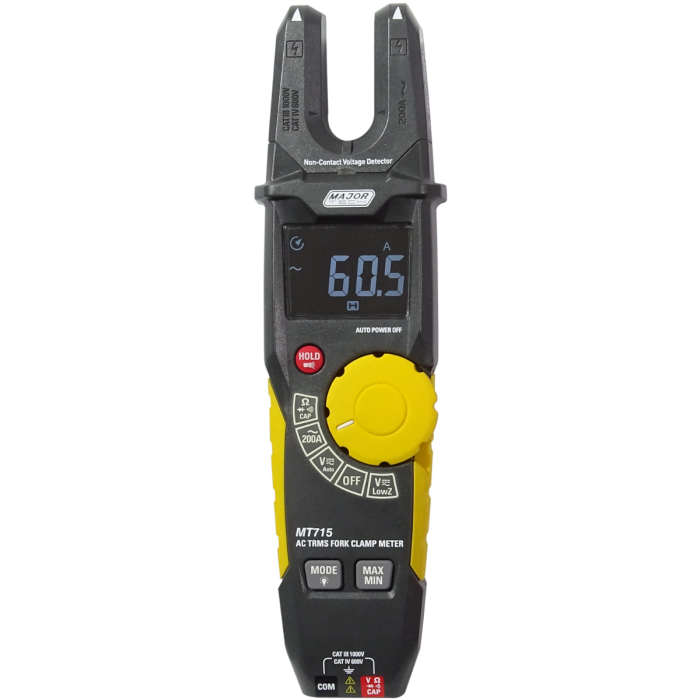

Major Tech MT715 200A AC Trms Open Jaw Clamp Meter

Name: Major Tech MT715 200A AC Trms Open Jaw Clamp Meter
SKU: MajMT715
Price: 3037.15 ZAR
Availability: InStock

Be the first to review this product

Special Price R 3 037,15 inc. vat Regular Price R 3 197,00 inc. vat

In stock

SKU

MajMT715

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

MajorTech MT715 200A AC Trms Open Jaw Clamp Meter. The MT715 200A AC Open Jaw TRMS clamp meter has a 6000 count display and offers a Data hold, MAX/Min function, Low impedance. The meter features a negative display screen with a illuminated rotary selector switch for use in dimly lit areas.

Features :

Measures AC Current up to 200A
Measures AC/DC Voltage up to 1000V
Resistance to 60M
Capacitance to 4000µF
16mm Clamp Jaw Opening
Non-contact voltage
6000 Count LCD Display
Data Hold
Diode Check
Backlight
Flashlight

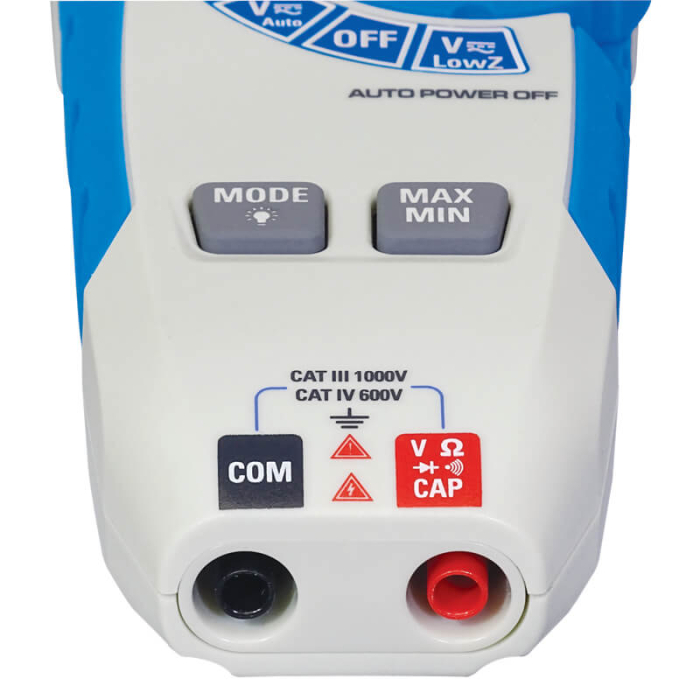

CAT IV 600V and CAT III 1000V

Accessories:
Soft Carrying Case
MT715 Test Leads
1.5V AAA Batteries
Instruction Manual

Technical Specifications

Technical Datasheet . Instruction Manual

ADDITIONAL INFORMATION

Jaw	16mm Open Jaw
AC Current	200A
AC current resolution	100mA
AC Current accuracy	±(3.0% +5)
DC Voltage	1000V
DC Voltage resolution	1mV
DC Voltage accuracy	±(1.0% +2)
AC Voltage	1000V
AC Voltage resolution	1mV
AC voltage accuracy	±(1.2% +2)
Resistance	60MΩ
Resistance resolution	0.1Ω
Resistance accuracy	±(1.5% +4)
Capacitance	4mF
Capacitance resolution	0.01nF
Capacitance accuracy	±(3.0% +5)
Continuity	Yes
Diode Test	Yes
True RMS Measurements	ACV, ACA
AC Bandwidth	2KHz
Digital Display	6000
Non-Contact Voltage (NCV)	Above 80V AC
Over-range indication	Yes
Input Impedance	˃10MΩ DCV & ˃10MΩ VAC
Min Max	Yes
Data Hold	Yes
Back Light	Yes
Flash Light	Yes
Enclosure	Double Injection moulding
Low battery indication	Yes
Power source	2 x LR6 (AA)
Dimensions	230 x 44 x 66mm
Weight	259g
Safety Specs	IEC61010-1 CatIV 600V
