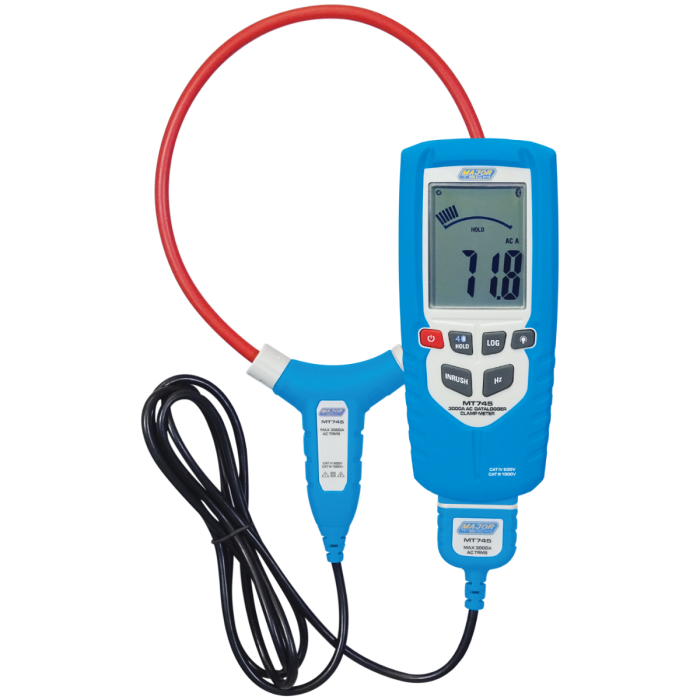

Major Tech MT745 3000A True RMS AC Clamp Meter, with Data Logger
R 3 841,00
inc. vat
In stock
SKU
MajMT745
Reliable nationwide shipping
Delivery in 4 - 5 days
The MT745 Flexible AC Current Clamp Meter with Data Logger is perfectly designed for hand help and tight space testing. The MT745 has a large backlit LCD display making it easier to read measurements. Data can be kept on screen using the data hold function. The Log Key will reload the current changes with the known period of time and data and store it in the instrument. Send data stored to the mobile app using the Bluetooth communication app.
Features :
- AC current True RMS measurements
- 3000 counts Backlight LCD
- Analogue Bar graph
- Bluetooth interface BLE 4.0
- 3000A ACA flexible clamp
- Data hold & inrush function
- Auto power Off
- CAT IV 600V and CAT III 1000V
Accessories
- Carrying case
- 2 x AAA x 1.5V batteries
- Meterbox iMM software
- Flexible Current Coil
- Instruction Manual
Technical Datasheet Instructional Manual
ADDITIONAL INFORMATION
| Jaw size |
150mm Flexi Clamp |
|---|---|
| AC Current |
0.5A to 3000A AC |
| AC current resolution |
0.01A |
| AC Current accuracy |
±(3.0% +5) |
| Resistance |
20MΩ |
| Resistance accuracy |
±(1.0% +4) |
| Frequency |
50Hz – 400Hz |
| Frequency resolution |
0.1A |
| Frequency accuracy |
±(3.0% +5) |
| True RMS Measurements |
ACA |
| AC Bandwidth |
50Hz to 400Hz |
| Digital Display |
3000 |
| Bargraph |
Yes |
| Bluetooth |
BLE 4.0 |
| Data logging |
Yes |
| Over-range indication |
Yes |
| Min Max |
Yes |
| Data Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
Moulded case |
| Low battery indication |
Yes |
| Power source |
2 x 1.5V AAA batteries |
| Weight |
315g |
| Dimensions |
230 x 76 x 40 mm |
