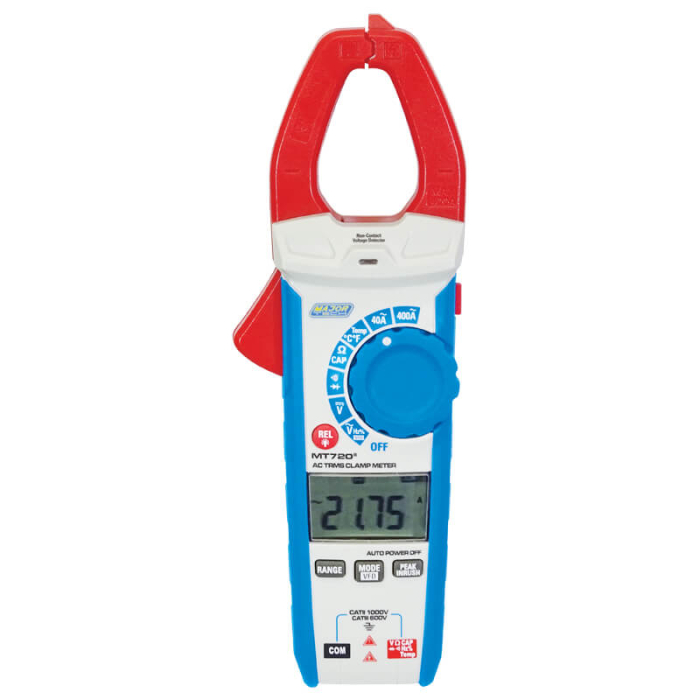

Major Tech MT720 400A AC Clamp Meter
MajorTech MT720 400A AC Clamp Meter. The MT720 400A AC TRMS clamp meter has a 4000 count LCD display that provides fast sampling time with high accuracy. The meter offers peak hold, 100ms Inrush current, low pass filter for accurate measurements of VFD signals with a convenient non-contact voltage function
Features :
- Measures AC Current up to 400A
- Measures AC/DC Voltage up to 1000V
- Resistance to 40M
- Temperature measurement to 1000°C
- Inrush Current
- 30mm clamp jaw opening
- VFD (Variable Frequency Drive)
- Non-contact voltage
- 4000 Count LCD Display
- Data Hold & Peak Hold function
- Diode Check & Continuity Buzzer
- Backlight
- Flashlight
- CAT III 600V and CAT II 1000V
Accessories:
Soft Carrying Case
HDT1282 Comfigrip Test Set
MT660 Wire Probe (-20° to 250°C)
MT802 K-Type Adaptor
1.5V AAA Batteries
Instruction Manual
ADDITIONAL INFORMATION
| Jaw size |
30mm |
|---|---|
| AC Current |
400A |
| AC current resolution |
10mA |
| AC Current accuracy |
±(2.5% +8) |
| DC Voltage |
1000V |
| DC Voltage resolution |
1mV |
| DC Voltage accuracy |
±(1.0% +3) |
| AC Voltage |
1000V |
| AC Voltage resolution |
1mV |
| AC voltage accuracy |
±(1.2% +5) |
| Resistance |
40MΩ |
| Resistance resolution |
0.1Ω |
| Resistance accuracy |
±(1.5% +2) |
| Frequency |
10Hz – 100kHz |
| Frequency resolution |
1Hz |
| Frequency accuracy |
±(1.0% +5) |
| Capacitance |
99.99mF |
| Capacitance resolution |
0.01nF |
| Capacitance accuracy |
±(3.0% +5) |
| Temperature |
-20 to 1000°C |
| Temperature resolution |
0.1°C |
| Temperature accuracy |
±(3.0% +3) |
| Duty Cycle |
20 to 80% |
| Duty Cycle resolution |
0.1% |
| Duty Cycle accuracy |
±(1.2% +10) |
| Continuity |
Yes |
| Diode Test |
Yes |
| True RMS Measurements |
ACV, ACA |
| AC Bandwidth |
2KHz |
| Digital Display |
4000 |
| Non-Contact Voltage (NCV) |
Yes |
| Over-range indication |
Yes |
| Input Impedance |
˃10MΩ DCV & ˃10MΩ VAC |
| Min Max |
Yes |
| Variable Frequency Drive |
Yes |
| Inrush Current |
100mS |
| Peak hold |
Yes |
| Data Hold |
Yes |
| Back Light |
Yes |
| Flash Light |
Yes |
| Enclosure |
Double Injection moulding |
| Low battery indication |
Yes |
| Power source |
3 x LR03 (AAA) |
| Dimensions |
220 x 80 x 39mm |
| Weight |
305g |
| Safety Specs |
IEC 61010-1 CATIII 600V |
