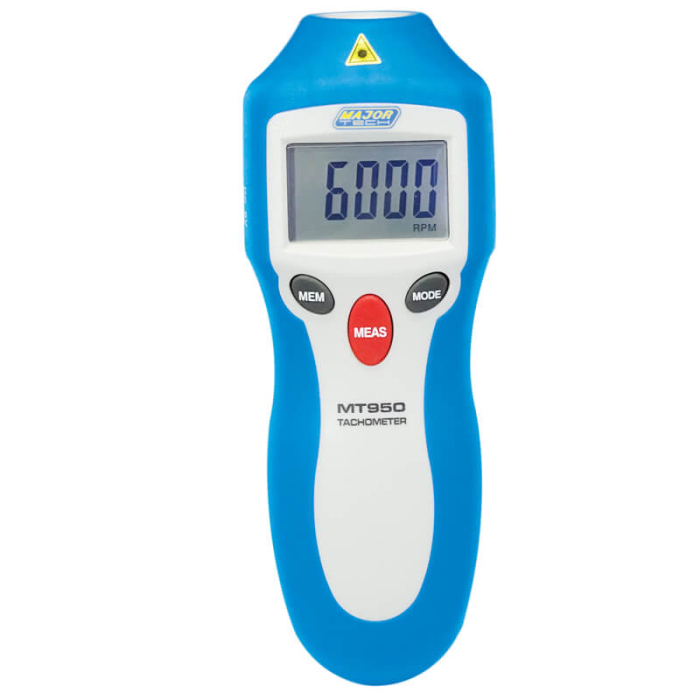

Major Tech MT950 Non Contact Tachometer

R 2 495,50 inc. vat
In stock
SKU
MajMT950
Reliable nationwide shipping
Delivery in 4 - 5 days

The MT950 provides fast and accurate non-contact RPM and TOT measurements of rotating objects. Using reflective tape on an object to be measured, simply point the laser at the object where the reflective tape is situated and the large backlit LCD will display the reading. The MT950 has a built-in memory that recalls the Max/Min and last value stored.

The MT950 provides fast and accurate non-contact revolution measurement of rotating objects. The count can range between 1 and 99 999 revolutions with an accuracy of 0.05% and a fast sampling time of 0.5 seconds. The MT950 is lightweight and easy to operate.

Accessories:

Soft Carrying Case
9V Battery
Instruction manual
3 x MT905

Technical Datasheet   Instructional Manual



Additional information

Non-contact test range

3 to 99 999RPM

Non-contact resolution

0.1RPM

Non-contact accuracy

±(0.05% +1)

Count range

1 to 99 999 REV

Sampling time

0.5 seconds (over 120RPM)

Detection distance

50mm to 500mm

Timebase

Quartz crystal

Digital Display

5 Digit LCD

Over-range indication

Yes

Min Max

Yes

Data Hold

Yes

Back Light

Yes

Enclosure

Over mould

Low battery indication

Yes

Power source

6LF22

Weight

160g

Dimensions

160 x 60 x 42mm

  • Fast and accurate non-contact RPM and TOT measurements of rotating objects
  • RPM Non-contact range 2 – 100 000RPM
  • TOT count mode range from 1 – 100 000RPM
  • Detecting distance 50 – 500mm
  • 5 Digit backlit LCD
  • Auto Range
  • Data Hold
  • 40 Reading memories
  • Min / Max
  • Resolution 0.1RPM
  • Built-in laser spot
