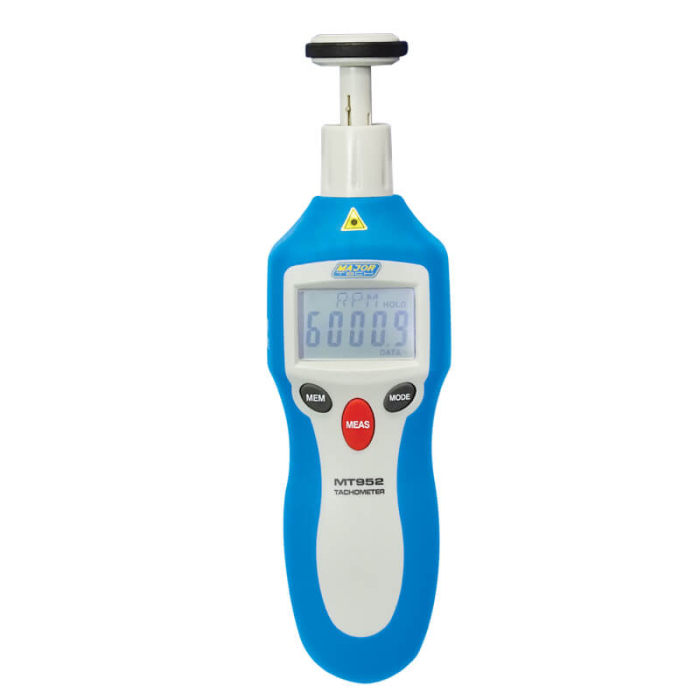

Major Tech MT952 Contact & Non-Contact Tachometer
The MT952 is a combination non-contact and contact digital tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000 rpm. The MT952 is supplied standard with an adaptor that converts the MT952 into a tachometer for measuring surface and axial speeds. The meter is capable of various measurements such as Rotation Speed, Total Revolutions, Frequency, Surface speed and length. The instrument is ideally suited for use with engines, process machinery, motors and machine tools.
Accessories:
Soft Carrying Case
9V Battery
Instruction manual
3 x MT905
1 x MT952CW
Technical Datasheet  Instructional Manual
Â
Additional information
| Contact test range |
2 to 20 000RPM |
|---|---|
| Contact resolution |
0.1RPM |
| Contact accuracy |
±(0.05% +1) |
| Non-contact test range |
2 to 99 999RPM |
| Non-contact resolution |
0.1RPM |
| Non-contact accuracy |
±(0.05% +1) |
| Sampling time |
0.5 seconds (over 120RPM) |
| Detection distance |
50mm to 500mm |
| Timebase |
Quartz crystal |
| Digital Display |
5 Digit LCD |
| Over-range indication |
Yes |
| Min Max |
Yes |
| Data Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
Over mould |
| Low battery indication |
Yes |
| Power source |
6LF22 |
| Weight |
160g |
| Dimensions |
160 x 60 x 42mm |
Â
- Combination non-contact and contact digital tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000 RMP
- RPM Contact range 2 – 20 000RPM
- RPM Non-contact range 2 – 100 000RPM
- Detecting distance 50 – 500mm
- 5 Digit backlit LCD
- Auto Range
- Data Hold
- 40 Reading Memories
- Min / Max / Avg
- Resolution 0.1 RPM
- Built-in laser spot
