Major Tech MTC45 2-in-1 Tone & Probe & DMM

R 2 898,00 inc. vat
In stock
SKU
MajMTC45
Reliable nationwide shipping
Delivery in 4 - 5 days

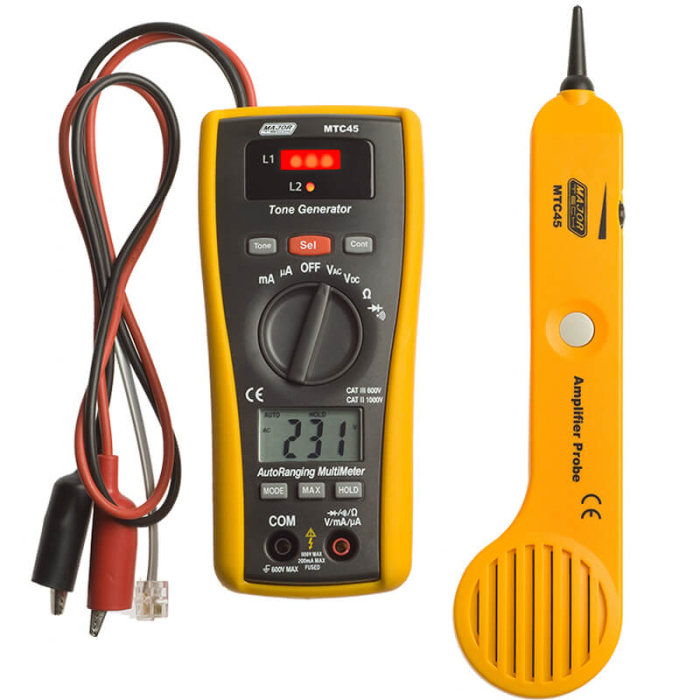

The MTC45 is a 2-in-1 Tone and Probe generator as well as an auto-ranging multimeter. The meter tests include wire trace, continuity test, clear/busy ringing, line test and tip/ring identification. The unit is supplied with crocodile clips for non-terminated cables and modular connectors for direct connections to telephone and internet wiring. The DMM can measure AC/DC volts, AC/DC current, Resistance Diode and has a continuity buzzer.

Accessories:
Carrying Case
9V Battery AAA
Test Leads
Crocodile Clips
Instruction Manual

Technical Datasheet   Instructional Manual



Additional information

DC Voltage

600V

DC Voltage accuracy

±(1.0% +3)

DC Voltage resolution

0.1mV

AC Voltage

600V

AC voltage accuracy

±(1.0% +5)

AC Voltage resolution

1mV

DC Current

200.0mA

DC Current accuracy

±(1.5% +3)

DC Current resolution

0.1µA

AC Current

200.0mA

AC Current accuracy

±(1.8% +8)

AC current resolution

0.1µA

Resistance

20MΩ

Resistance accuracy

±(1.2% +3)

Resistance resolution

0.1Ω

Digital Display

2000

Continuity

Yes

AC Bandwidth

50Hz-60Hz

Power source

2 x R03 and 2 x 6LF22

Over-range indication

Yes

Data Hold

Yes

Diode Test

Yes

Enclosure

Rubber Holster

Low battery indication

Yes

Safety Specs

IEC 61010-1 CATIII 300V

Weight

328g

Dimensions

162 x 74 x 43mm

  • Tests include wire trace, continuity test, clear/busy/ringing line test and tip/ring identification
  • Alligator clips for non-terminated cables and modular connectors for direct connections to telephone or internet wiring
  • Built-in speaker on probe with sensitivity control
  • Selectable continuous or variable tone generation
  • Insulated inductive probe tip prevents shorting conductors
  • Measures ACV and DCV up to 600V, ACA and DCA up to 200mA, Resistance to 20MΩ, Diode and Continuity
  • RJ11 Modular Connectors
  • CATIII 300V and CAT II 600V
