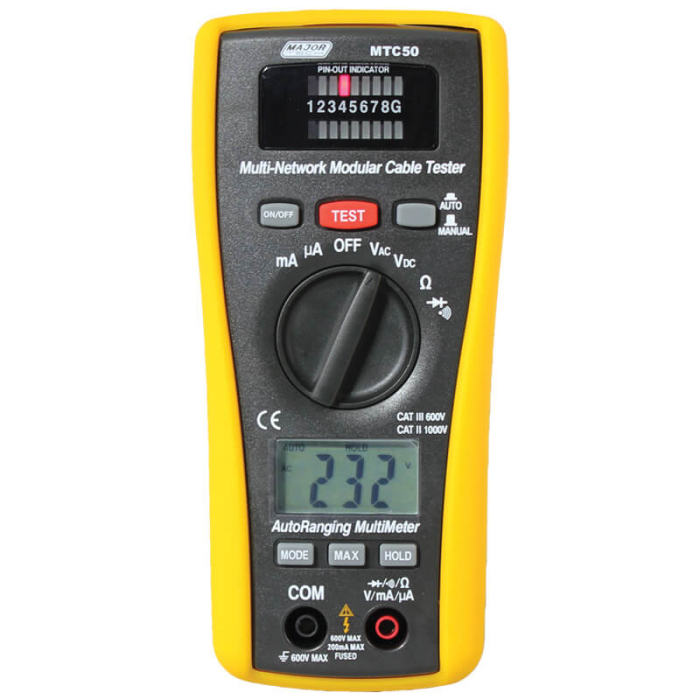

Major Tech MTC50 2-in-1 LAN Tester & Multimeter

R 2 495,50 inc. vat
In stock
SKU
MajMTC50
Reliable nationwide shipping
Delivery in 4 - 5 days

The MTC50 is a 2 in 1 LAN tester and multimeter and is a newly designed and very practical tester that can easily read the correct pin configuration of 10/100 Base-T cable (Category 5), 10Base-2 cable (coax), RJ45/RJ11 modular cables, AT&T 258A, 356A, TIA-568A/568B and Token Ring cable by comparing one transmitting end to the corresponding receiving end.

With the remote kit test cables can be installed over long distances either on wall plates or patch panels. It is easy to verify the cable continuity, open, short and cross-connect. The auto range digital multimeter allows the user to measure AC and DC voltage, AC and DC current, Resistance, Continuity and Diode test.

Accessories:

  • Carrying Case
  • 9V Battery AAA
  • Test Leads
  • Instruction Manual
Technical Datasheet   Instructional Manual



Additional information

DC Voltage

600V

DC Voltage accuracy

±(1.0% +3)

DC Voltage resolution

0.1mV

AC Voltage

600V

AC voltage accuracy

±(1.0% +5)

AC Voltage resolution

1mV

DC Current

200.0mA

DC Current accuracy

±(1.5% +3)

DC Current resolution

0.1µA

AC Current

200.0mA

AC Current accuracy

±(1.8% +8)

AC current resolution

0.1µA

Resistance

20MΩ

Resistance accuracy

±( 1.2%+3)

Resistance resolution

0.1Ω

Power source

2 x R03 and 6LF22

Over-range indication

Yes

Min Max

Yes

Low battery indication

Yes

Lan Tester

RJ45 and RJ11 BNC

Diode Test

Yes

Digital Display

2000

Continuity

Yes

Data Hold

Yes

Back Light

Yes

AC Bandwidth

50Hz-60Hz

Enclosure

Rubber Holster

Safety Specs

IEC61010-1 CatIII 600V

Weight

308g

Dimensions

162 x 74 x 43mm

  • RJ45 and RJ11 modular connectors
  • Tests CAT5 installations
  • Remotely test cables 300m away
  • Locked status wiring
  • Digital Multimeter
  • AC / DC V 600V
  • Amps 200mA
  • Resistance 20MΩ
  • Diode Check
  • Continuity
  • 2000 Count LCD
  • CAT III 600V and CAT II 1000V
