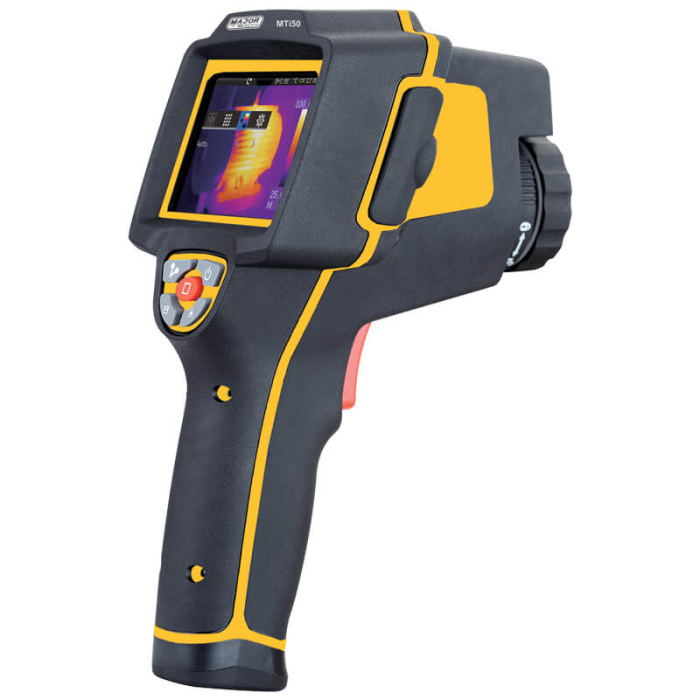

Major Tech MTi50 160x 120 Pix Thermal Camera
This Thermal Imager is designed to make your work easier, more productive and effective. 160 x 120 resolution at 50 Hz for real-time capture; a big, bright touch screen with toolbar helps you to fine-tune and analyze images quickly. It features Temperature ranges from -20°C to 400°C, 20X continuous zoom, picture-in-picture, voice comment recording and text annotation on images. A Hot/Cold spot marker automatically finds the hottest and coldest spots and includes a memory card, lithium polymer battery & power supply, and USB cable.
Applications:
Plant / General Maintenance
HVAC/R
Transportation / Automotive
Cooling and Reheating
Serving areas and Cold storage
Foodservice equipment
Accessories:
Carrying Case
Lithium Polymer Battery
Instruction Manual
Charger
Software
USB cable
Yellow RCA Cable
4GB SD Card
Calibration Certificate
Additional information
| Spatial resolution (IFOV) |
3.33mrad |
|---|---|
| Thermal sensitivity/NETD |
˂0.08°C @ +30°C |
| Image Range |
50Hz |
| Focus mode |
Manual |
| Zoom |
1 x 20 x continuous, digital zoom |
| Focal Length |
7.5mm |
| IR Resolution |
160 x 120 pixels |
| Display |
Capacitive Touch screen, 3.5 LCD, 320 x 240 pixels |
| Image Modes |
IR Image, Visual image, picture in picture, Image Fusion |
| Picture in Picture |
IR area on visual image or visual image on IR |
| Colour Palletes |
Grey/grey inv/iron/iron inv/rainbow/feather |
| Temperature range |
Low -20°C to 150°C, High 0°C to 400°C |
| Temperature accuracy |
±(2°C or ± 2%) |
| Spot |
3 |
| Line |
2 lines (horizontal and vertical) |
| Area |
3 x boxes with max/min/ave |
| Isotherm |
Detect high/low temperature/interval |
| Emissivity correction |
Variable 0.01 to 1.0 |
| Measurement corrections |
Emissivity, ambient temp, distance, relative humidity, offset temp |
| Videos |
4Gbytes Micro SD card |
| Videos format |
Std MPEG-4, 640 x 480@30fps, on memory card> 60minutes |
| Videos storage mode |
Std JPEG, incl measurement data, on memory card >1000 pictures |
| Images format |
Std JPEG, incl measurement data, on memory card >1000 pictures |
| Image storage mode |
IR/Visual images: simultaneous storage of IR and visual images |
| Built-in |
640 x 480 pixels |
| Built-in digital lens data |
FOV 62.3° |
| Interfaces |
USB-mini, audio, composite video, Micro SD slot |
| Video Out |
Composite (PAL and NTSC) |
| Power source |
7.4V 2600mAH Lithium polymer, 4.5 hours operating time |
| Input system |
DC 9V to 12V |
| Charging system |
In-camera (AC adapter) |
| Enclosure |
Overmould casing IP65 |
| Dimensions |
243 x 130 x 160mm |
| Weight |
920g |
- 160 x 120 IR Resolution
- 50Hz Resolution
- 3.5” Colour TFT LCD
- Touch screen
- Temperature -20°C – 150°C and 0° – 400°C
- Video recording with voice MPEG 4
- Picture-in-picture
- 20 x Digital zoom
- Delta T-differential temperature
- 3 – Spot meter
- Min / Max / Average
- Adjustable thermal fusion
- 8 Colour palettes
- 11mm, 22mm and 33mm Lenses (optional)
- The built-in laser and illuminating light
- MicroSD
- USB interface
