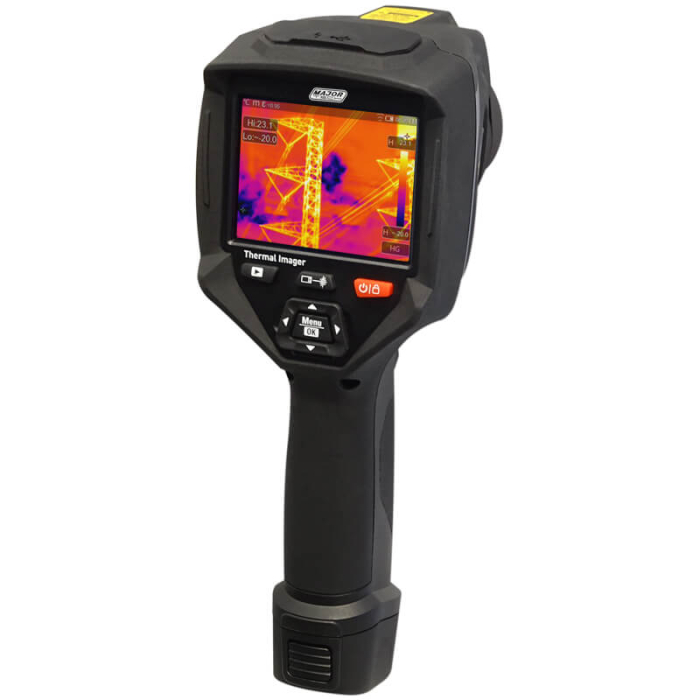

Major Tech MTi60 384 X 288 Pix, -20°C to + 400°C Thermal Camera
This Thermal Imager is designed to make your work easier, more productive and effective. 384 x 288 resolution at 50 Hz for real-time capture; a big, bright touch screen with toolbar helps you to fine-tune and analyze images quickly. It features temperature ranges from -20°C to 400°C, 20X continuous zoom, picture-in-picture, voice comment recording and text annotation on images. A Hot/Cold spot marker automatically finds the hottest and coldest spots and includes a memory card, lithium polymer battery & power supply, and USB cable.
Applications:
- Plant / General Maintenance
- HVAC/R
- Transportation / Automotive
- Cooling and Reheating
- Serving areas and Cold storage
- Food service equipment
Accessories:
- Carrying Case
- Lithium Polymer Battery
- Instruction Manual
- Charger
- Software
- USB cable
- Yellow RCA Cable
- 4GB SD Card.
- Calibration Certificate
- Earphones
Additional information
| Field of View |
24.6° x 18.6°/0.3m |
|---|---|
| Spartial resolution (IFOV) |
2.28mrad |
| Thermal sensitivity/NETD |
˂0.06°C @ +30°C |
| Image Range |
50Hz |
| Focus mode |
Manual |
| Zoom |
1 x 20 x continuous, digital zoom |
| Rotate |
0°-360°, continuous increased by 1° |
| Focal Length |
22mm |
| IR Resolution |
384 x 288 pixels |
| Display |
Capacitive Touch screen, 3.5 LCD, 320 x 240 pixels |
| Image Modes |
IR Image, Visual image, picture in picture, Image Fusion |
| Picture in Picture |
IR area on visual image or visual image on IR |
| Colour Palletes |
Iron/rainbow/grey/grey inverted/sepia/blue_red/hot_cold/humidity |
| Temperature range |
Low -20°C to 150°C, High 0°C to 400°C |
| Temperature accuracy |
±(2°C or ± 2%) |
| Spot |
3 |
| Line |
2 lines (horizontal and vertical) |
| Area |
3 x boxes with max/min/ave |
| Isotherm |
Detect high/low temperature/interval |
| Emmisivity correction |
Variable 0.01 to 1.0 |
| Measurement corrections |
Emissivity, ambient temp, distance, relative humidity, offset temp |
| Videos |
4Gbytes Micro SD card |
| Videos format |
Std MPEG-4, 640 x 480@30fps, on memory card> 60minutes |
| Videos storage mode |
IR/Visual images: simultaneous storage of IR and visual images |
| Images format |
Std JPEG, incl measurement data, on memory card >1000 pictures |
| Image storage mode |
IR/Visual images: simultaneous storage of IR and visual images |
| Built-in |
640 x 480 pixels |
| Built-in digital lens data |
FOV 62.3° |
| Interfaces |
USB-mini,audio, composite video, Micro SD slot |
| Video Out |
Composite (PAL and NTSC) |
| Power source |
7.4V 2600mAH Lithium polymer, 4.5 hours operating time |
| Input system |
DC 9V to 12V |
| Charging system |
In camera (AC adapter) |
| Enclosure |
Overmould casing IP65 |
| Weight |
920g |
| Dimensions |
243 x 130 x 160mm |
- 384 x 288 IR Resolution
- 50Hz Resolution
- 3.5” Colour TFT LCD
- Touch screen
- Temperature -20°C to 150°C and 0° to 400°C
- Video recording with voice MPEG 4
- Picture-in-picture
- 20 x Digital zoom
- Delta T-differential temperature
- 3 – Spotmeter
- Min/ Max/ Average
- Adjustable thermal fusion
- 8 Colour palettes
- 11mm, 22mm and 33mm Lenses (optional)
- The built-in laser and illuminating light
- MicroSD
- USB interfaces
-
