Sandvik Coromant MB-07G100-00-11L 1025 CoroCut™ MB solid carbide head for grooving Previous Sandvik Coromant MB-07G100-00-11L 1025 CoroCut™ MB solid carbide head for grooving

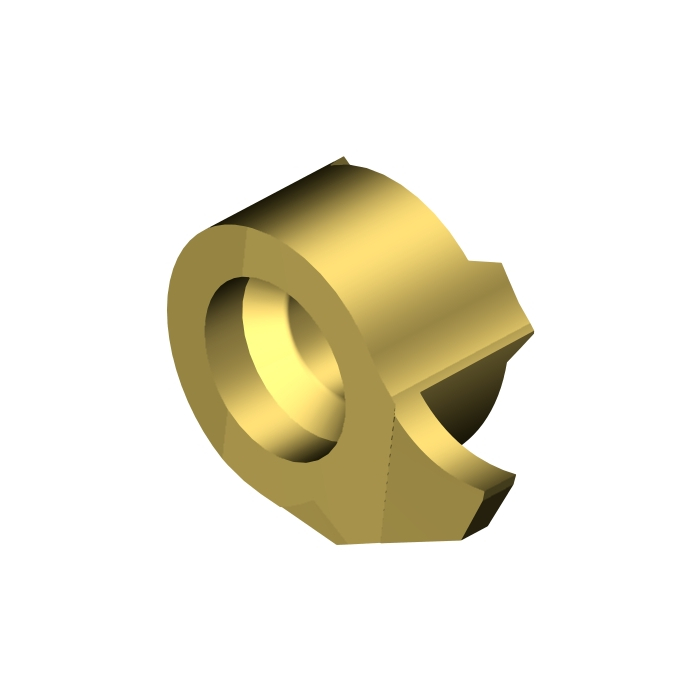

Sandvik Coromant MB-07G100-00-11R 1025 CoroCut™ MB solid carbide head for grooving

R 378,35 inc. vat
In stock
SKU
5735543
CoroCut® MB solid carbide head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for grooving
More Information
DCON - Connection Diameter 7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 3.9mm
WT - Weight Of Item 2g
OAL - Overall Length 4.7mm
OHX - Maximum Overhang 3.9mm
KAPR - Tool Cutting Edge Angle 90deg
DMIN - Minimum Bore Diameter 11mm
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 6.8mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
CW - Cutting Width 1mm
CWTOLL - Cutting Width Lower Tolerance 0mm
CWTOLU - Cutting Width Upper Tolerance 0.05mm
CDX - Cutting Depth Maximum 2.8mm
CHWL - Chamfer Width Left Hand 0.04mm
CHWR - Chamfer Width Right Hand 0.04mm
PSIRL - Major Left Hand Cutting Edge Angle 0deg
PSIRR - Major Right Hand Cutting Edge Angle 0deg
ORDCODE MB-07G100-00-11R 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMD_C0070_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-06-23 10:06:00.000
Hand R
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
