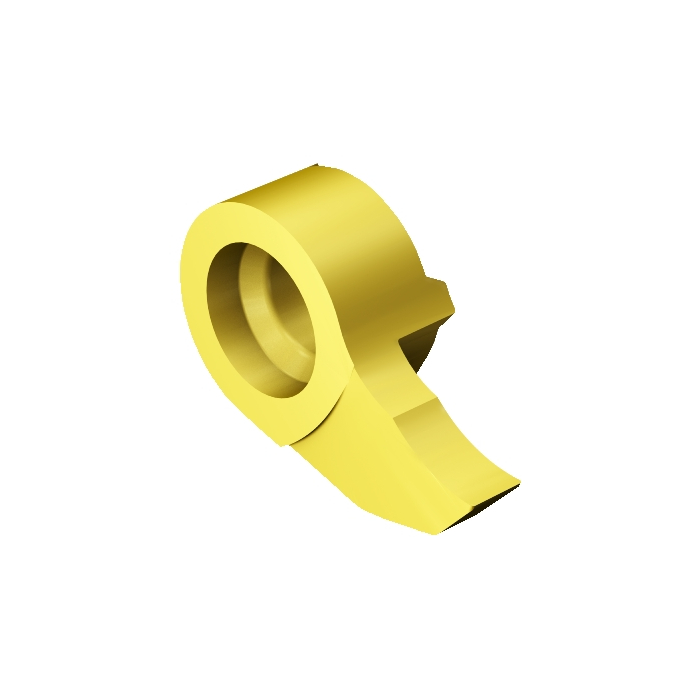

Sandvik Coromant MB-09G070-00-14L 1025 CoroCut™ MB solid carbide head for grooving

Name: Sandvik Coromant MB-09G070-00-14L 1025 CoroCut™ MB solid carbide head for grooving
SKU: 5735711
Price: 396.75 ZAR
Availability: InStock

Be the first to review this product

R 396,75 inc. vat

In stock

SKU

5735711

CoroCut® MB solid carbide head for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® MB solid carbide head for grooving

More Information

More Information
DCON - Connection Diameter	9mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	5.2mm
WT - Weight Of Item	1.8g
OAL - Overall Length	5.9mm
OHX - Maximum Overhang	5.2mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	14mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	9mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
CW - Cutting Width	0.73mm
CWTOLL - Cutting Width Lower Tolerance	0mm
CWTOLU - Cutting Width Upper Tolerance	0.03mm
CDX - Cutting Depth Maximum	1.2mm
CHWL - Chamfer Width Left Hand	0.04mm
CHWR - Chamfer Width Right Hand	0.04mm
PSIRL - Major Left Hand Cutting Edge Angle	0deg
PSIRR - Major Right Hand Cutting Edge Angle	0deg
ORDCODE	MB-09G070-00-14L 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMD_C0090_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-06-23 10:08:00.000
Hand	L
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
