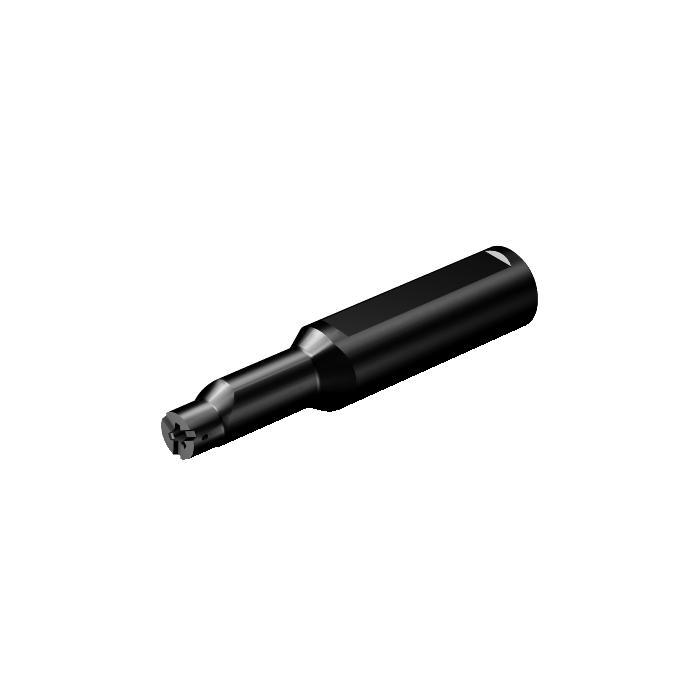

Sandvik Coromant MB-E16-64-09 Cylindrical shank with flat to CoroCut™ MB adaptor
R 5 660,30
inc. vat
In stock
SKU
5735508
Cylindrical shank with flat to CoroCut® MB adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank with flat to CoroCut® MB adaptor
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 9mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 124.7mm |
| BD - Body Diameter | 9.5mm |
| LB - Body Length | 124.7mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 0.25kg |
| OAL - Overall Length | 124.7mm |
| OHX - Maximum Overhang | 64mm |
| LSC - Clamping Length | 60mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| OHN - Minimum Overhang | 64mm |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| H - Shank Height | 14mm |
| LPR - Protruding Length | 124.7mm |
| ORDCODE | MB-E16-64-09 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G1600_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SIMD_C0090_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-20 17:00:00.000 |
| Hand | N |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
