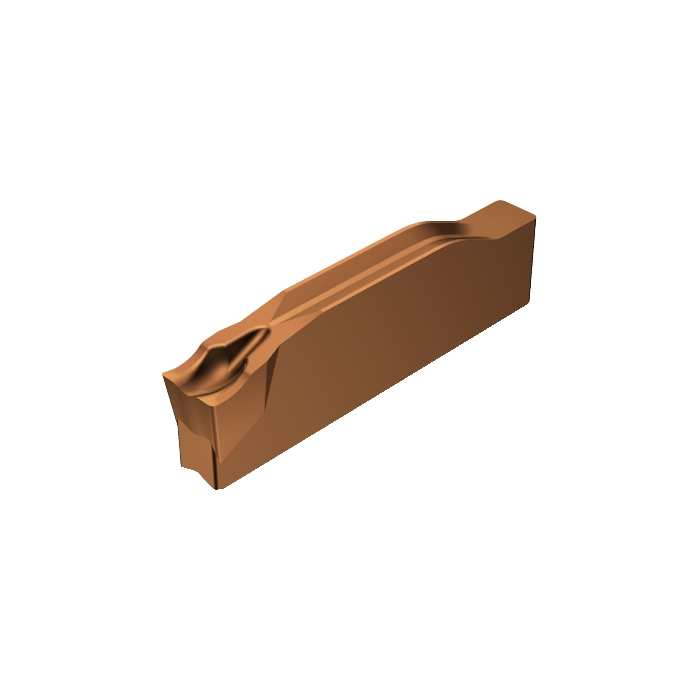

Sandvik Coromant N123E2-0200-0002-CM 1105 CoroCut™ 1-2 insert for parting
Next
Sandvik Coromant MACR 3 200-R 1025 CoroCut™ XS insert for parting
Previous
![Sandvik Coromant N123E2-0200-0002-CM 1105 CoroCut™ 1-2 insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46481858b/sandvik-coromant-n123e2-0200-0002-cm-1105-corocuttm-1-2-insert-for-parting.jpg)
![Sandvik Coromant MACR 3 200-R 1025 CoroCut™ XS insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46342ced4/sandvik-coromant-macr-3-200-r-1025-corocuttm-xs-insert-for-parting.jpg)
R 303,60
inc. vat
In stock
SKU
5735638
CoroCut® 1-2 insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 2.3g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 4.3321mm |
CW - Cutting Width | 2mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.1mm |
REL - Corner Radius Left | 0.2mm |
RER - Corner Radius Right | 0.2mm |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
LIG - Insert Gauge Length | 19.75mm |
ORDCODE | N123E1-0200-0002-CM 1125 |
CHANGEDATE | 2022-06-23 10:07:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | E |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCE1_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | CM |
CEDC - Cutting Edge Count | 1 |
