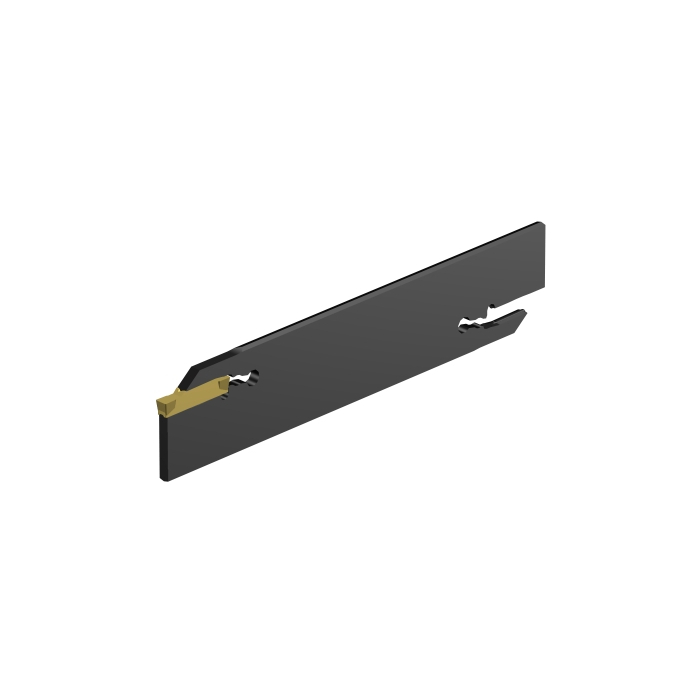

Sandvik Coromant N123H55-25A2 CoroCut™ 1-2 blade for parting

Name: Sandvik Coromant N123H55-25A2 CoroCut™ 1-2 blade for parting
SKU: 5736262
Price: 2142.45 ZAR
Availability: InStock

R 2 142,45 inc. vat

In stock

SKU

5736262

CoroCut® 1-2 blade for parting

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 blade for parting

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
WT - Weight Of Item	0.112kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	55mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	3.675mm
HF - Functional Height	25mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
H - Shank Height	31.9mm
CW - Cutting Width	4mm
CDX - Cutting Depth Maximum	55mm
ORDCODE	N123H55-25A2
ADINTMS - Adaptive Interface Machine Direction	M_PMC012_C0250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-06-13 15:07:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCH2_5
Hand	N
MIID - Master Insert Identification	N123H2-0400-0004-TF
SSC - Insert Seat Size Code	H
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
