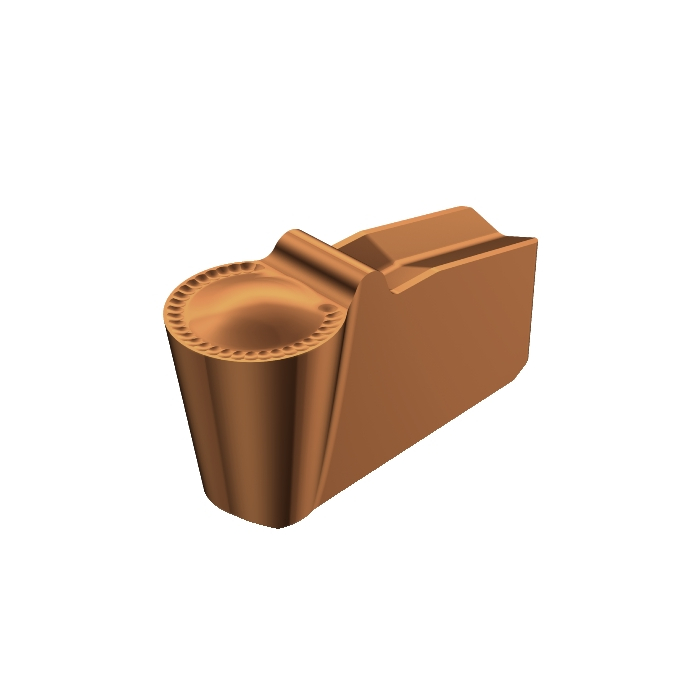

Sandvik Coromant N151.2-400-40-5P 235 T-Max™ Q-Cut insert for profiling
Next
Sandvik Coromant N151.2-400-40-5G 525 T-Max™ Q-Cut insert for grooving
Previous
![Sandvik Coromant N151.2-400-40-5P 235 T-Max™ Q-Cut insert for profiling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/47560657f/sandvik-coromant-n151-2-400-40-5p-235-t-maxtm-q-cut-insert-for-profiling.jpg)
![Sandvik Coromant N151.2-400-40-5G 525 T-Max™ Q-Cut insert for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/47558b9f9/sandvik-coromant-n151-2-400-40-5g-525-t-maxtm-q-cut-insert-for-grooving.jpg)
R 293,25
inc. vat
In stock
SKU
5738042
T-Max® Q-Cut insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for profiling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 3.4g |
RMPX - Maximum Ramping Angle | 90deg |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
RE - Corner Radius | 2mm |
Insert Thickness | 8.106mm |
CW - Cutting Width | 4mm |
CWTOLL - Cutting Width Lower Tolerance | -0.05mm |
CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
APMX - Depth Of Cut Maximum | 1.7mm |
RETOLL - Corner Radius Lower Tolerance | -0.025mm |
RETOLU - Corner Radius Upper Tolerance | 0.025mm |
ORDCODE | N151.2-400-40-5P 1125 |
CHANGEDATE | 2022-06-23 10:26:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | 40 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB2G40_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 5P |
CEDC - Cutting Edge Count | 1 |
