Sandvik Coromant N151.2-400-4E 2135 T-Max™ Q-Cut insert for parting
Next
Sandvik Coromant N151.2-400-4E 1125 T-Max™ Q-Cut insert for parting
Previous
![Sandvik Coromant N151.2-400-4E 2135 T-Max™ Q-Cut insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/473990fe1/sandvik-coromant-n151-2-400-4e-2135-t-maxtm-q-cut-insert-for-parting.jpg)
![Sandvik Coromant N151.2-400-4E 1125 T-Max™ Q-Cut insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/473975bce/sandvik-coromant-n151-2-400-4e-1125-t-maxtm-q-cut-insert-for-parting.jpg)
R 308,20
inc. vat
In stock
SKU
5737456

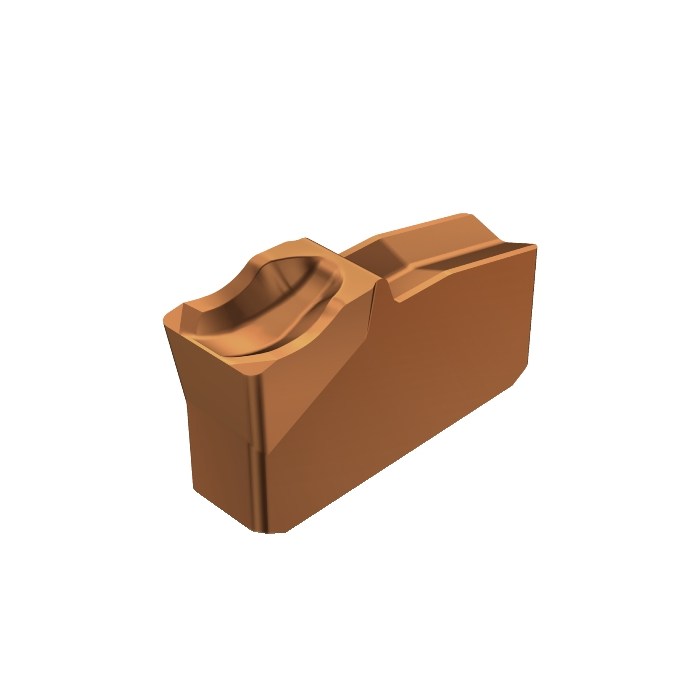

T-Max® Q-Cut insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 3.3g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 8.106mm |
CW - Cutting Width | 4mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.25mm |
REL - Corner Radius Left | 0.3mm |
RER - Corner Radius Right | 0.3mm |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
ORDCODE | N151.2-400-4E 1145 |
CHANGEDATE | 2022-06-23 10:22:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | 40 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB2G40_1 |
Grade | 1145 |
COATING | PVD TiAlN+TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 4E |
CEDC - Cutting Edge Count | 1 |
