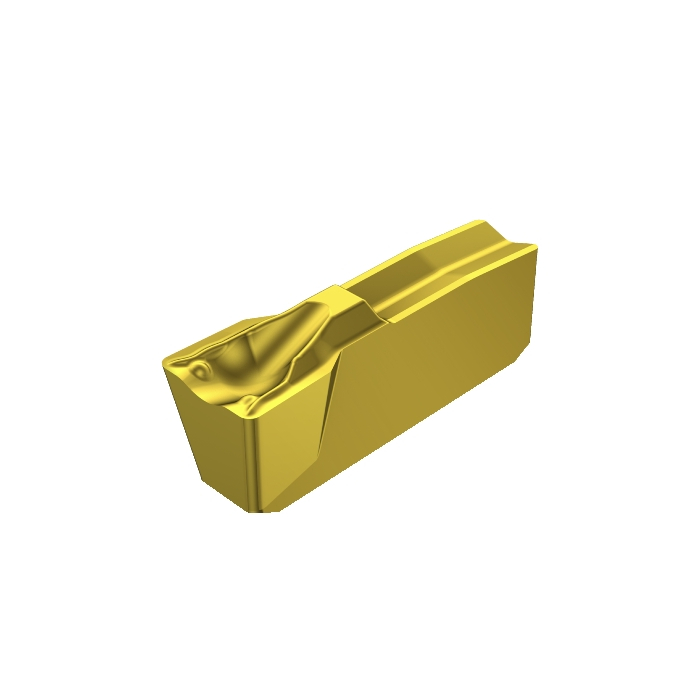

Sandvik Coromant N151.3-600-50-7G 2135 T-Max™ Q-Cut insert for grooving Previous Sandvik Coromant N151.3-600-50-7G 2135 T-Max™ Q-Cut insert for grooving

Sandvik Coromant N151.3-600-50-7G 235 T-Max™ Q-Cut insert for grooving

R 303,60 inc. vat
In stock
SKU
5737036
T-Max® Q-Cut insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3.5g
RMPX - Maximum Ramping Angle 0deg
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 8deg
Insert Thickness 6.106mm
CW - Cutting Width 6mm
CWTOLL - Cutting Width Lower Tolerance 0mm
CWTOLU - Cutting Width Upper Tolerance 0.1mm
REL - Corner Radius Left 0.4mm
RER - Corner Radius Right 0.4mm
RETOLL - Corner Radius Lower Tolerance -0.1mm
RETOLU - Corner Radius Upper Tolerance 0.1mm
ORDCODE N151.3-600-50-7G 235
CHANGEDATE 2022-06-23 10:18:00.000
Hand N
IFS - Insert Mounting Style Code 7
SSC - Insert Seat Size Code 50
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CB3F50_1
Grade 235
COATING CVD TiCN+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation 7G
CEDC - Cutting Edge Count 1
