Sandvik Coromant PRGNR 3232P 19 T-Max™ P shank tool for turning
R 2 432,25
inc. vat
In stock
SKU
5738285
T-Max® P shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P shank tool for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 170mm |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 1.255kg |
| OAL - Overall Length | 170mm |
| OHX - Maximum Overhang | 38mm |
| LSC - Clamping Length | 132mm |
| RMPX - Maximum Ramping Angle | 40deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 40mm |
| HF - Functional Height | 32mm |
| GAMO - Orthogonal Rake Angle | -6deg |
| LAMS - Inclination Angle | -6deg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 19.05mm |
| RE - Corner Radius | 9.525mm |
| Insert Thickness | 6.35mm |
| H - Shank Height | 32mm |
| B - Shank Width | 32mm |
| ORDCODE | PRGNR 3232P 19 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A3232_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 13:46:00.000 |
| MTP - Clamping Type Code | P |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RN1906_1 |
| Hand | R |

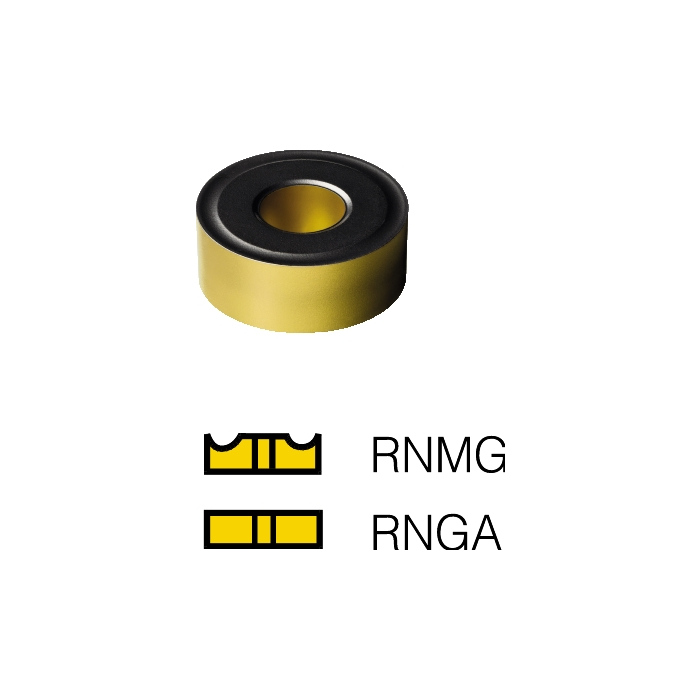

| MIID - Master Insert Identification | RNMG 19 06 00 |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 19 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
